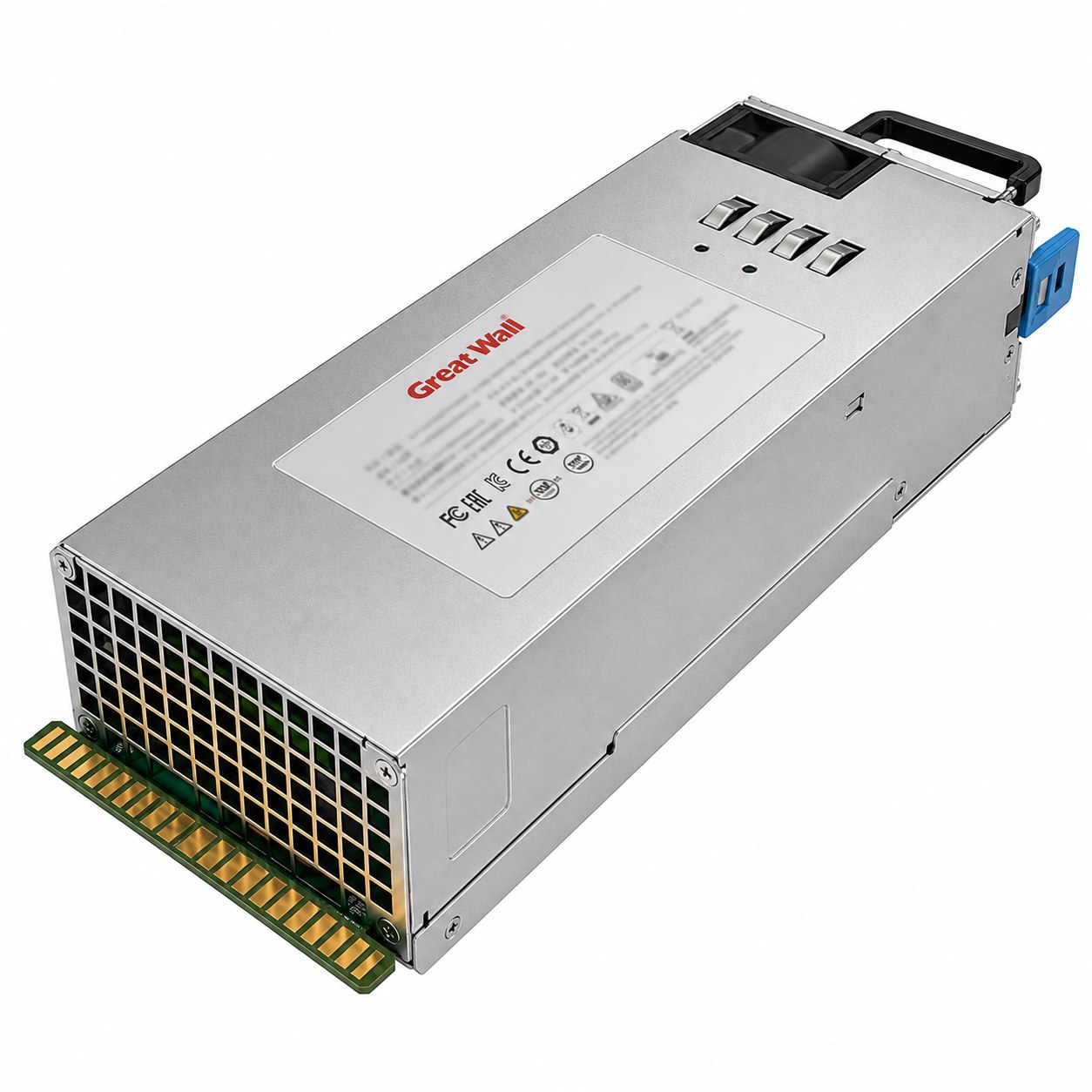

PRODUCT VIEW CRPS3000CL5 product image 1

Images are for reference only. Actual product appearance may vary.

01 / 06

CRPS3000CL5

CRPS

INQUIRY READY

CRPS3000CL5

Greatwall / Server Power Supply / CRPS

CRPS3000CL5 targets Data Centers & Cloud Infrastructure, Networking & Communication, Telecom & 5G Infrastructure, and Industrial Automation and uses 3000W capacity and a stable +54V / 23A rail to maintain practical deployment in systems that cannot tolerate unstable power.

Model
CRPS3000CL5
Input Voltage
Not specified in provided data
Standby Output
+12VSB / 2A
Output Power
3000W
Request a Quote ↗

Need compatibility confirmation? Send us your model, label photo, power rating, and connector requirements.

PRODUCT OVERVIEW

Built for reliable, continuous power delivery.

The CRPS3000CL5 is designed for systems that require 54V output in a long-body CRPS mechanical format. It is suitable for 54V server platforms, accelerator infrastructure, modular compute systems, rack-level 54V distribution, and high-efficiency infrastructure upgrades where high-voltage output, mechanical compatibility, airflow direction, and thermal reliability are important. For this 3000W capacity, +54V / 23A, +54V / 45.6A, +54V / 50A, +54V / 55A output, for long-term service, document fan inspection, connector seating, event-log review, and replacement procedures as part of the maintenance plan.

Plan the CRPS3000CL5 output wiring around the actual current demand: keep conductors short, use low-resistance terminations, separate power paths from sensitive signal wiring, and preserve access for retightening and inspection. Arrange the enclosure so heat from neighboring components cannot collect around the supply or its connection points.

Qualify the CRPS3000CL5 at several load levels, measuring voltage at both the supply terminals and the equipment input rather than relying only on no-load readings. Record cable drop, connector temperature, and enclosure temperature as baseline values. Later maintenance checks can compare against this record to identify loose joints, rising contact resistance, or deteriorating heat dissipation before they interrupt service.

CORE ADVANTAGES

3000W Titanium CRPS Power Supply for 54V Long-Body Server and High-Efficiency Infrastructure Platforms

The CRPS3000CL5 delivers 3000W output for long-body server platforms, 54V infrastructure systems, accelerator-ready equipment, modular compute platforms, and rack-level power architectures requiring efficient high-voltage power delivery.

01

3000W Titanium 54V CRPS Power Capacity

The CRPS3000CL5 delivers 3000W output for long-body server platforms, 54V infrastructure systems, accelerator-ready equipment, modular compute platforms, and rack-level power architectures requiring efficient high-voltage power delivery.

02

Long-Body 265 × 73.5 × 40 mm CRPS Structure

Built in a 265 × 73.5 × 40 mm form factor, this model is suitable for server chassis and infrastructure platforms designed for longer CRPS power modules rather than standard 185 mm CRPS units.

03

54V Main Output Architecture

The unit provides +54V / 23A , +54V / 45.6A , +54V / 50A , and +54V / 55A main output configurations, supporting modern high-voltage server power designs and downstream conversion systems.

04

Standby Power for System Control

With +12VSB / 2A standby output, the CRPS3000CL5 supports system management, standby logic, monitoring circuits, and auxiliary power functions.

05

Titanium Efficiency for Continuous High-Load Operation

With Titanium efficiency , this model helps reduce power conversion loss, improve energy utilization, and support better thermal behavior in 24/7 infrastructure environments.

06

FR Airflow for Rack-Level Cooling Design

With FR airflow direction , 0°C to 55°C operating temperature , and Class A MEI , the CRPS3000CL5 is suitable for compatible rack systems using standard front-to-rear airflow architecture.

MODEL SELECTION

Compare Greatwall power options.

Review nearby Greatwall models and select the power level, output architecture, and form factor that best match the target system.

Model Power Input Voltage Efficiency Form Factor Best-Fit Application
CRPS3000CL5 3000W Not specified in provided data Titanium 265 × 73.5 × 40 mm CRPS 54V long-body server platforms, accelerator-ready infrastructure, and high-efficiency rack systems
CRPS3200CL5 3200W Not specified in provided data Not specified in provided data Not specified in provided data Higher-capacity 54V long-body platforms, dense rack systems, and demanding high-voltage infrastructure

DEPLOYMENT SCENARIOS

Where CRPS3000CL5 fits best.

The CRPS3000CL5 is designed for systems that require 54V output in a long-body CRPS mechanical format. It is suitable for 54V server platforms, accelerator infrastructure, modular compute systems, rack-level 54V distribution, and high-efficiency infrastructure upgrades where high-voltage output, mechanical compatibility, airflow direction, and thermal reliability are important.

Scenario System Requirement Why CRPS3000CL5 Fits
54V Long-Body Server Platforms High-voltage power delivery in compatible extended PSU bays 265 × 73.5 × 40 mm structure fits platforms designed for longer CRPS modules
Accelerator Infrastructure Stable 54V power for accelerator-supported server architectures +54V / 55A output option supports demanding high-voltage power requirements
Rack-Level 54V Distribution Higher-voltage power architecture for dense rack systems 54V main output supports downstream conversion and modern rack power designs
Modular Compute Systems Power support for modular boards, processors, and cooling modules 3000W capacity provides strong headroom for compute-focused infrastructure
High-Efficiency Infrastructure Upgrades Replacement or upgrade for compatible long-body PSU platforms Titanium efficiency and 54V output support improved power architecture modernization
Enterprise AI Equipment Reliable power for AI-ready infrastructure using 54V power design Long-body CRPS structure and FR airflow support compatible rack-level deployment

POWER DESIGN

Reliability notes for continuous operation.

The CRPS3000CL5 is built for long-body server and infrastructure platforms that require 54V output instead of conventional 12V-only power architecture. Compared with standard 185 mm CRPS units, its 265 mm length makes mechanical fitment especially important. It should be selected for systems whose PSU bay, guide rail, connector position, airflow path, and power architecture are designed for this format.

  • 3000W output capacity supports accelerator infrastructure, modular compute platforms, 54V rack systems, and high-density server equipment.
  • 54V main output architecture supports modern high-voltage server power designs and downstream conversion requirements.
  • Multiple 54V output configurations provide flexibility for different load levels and platform power designs.
  • +12VSB / 2A standby output supports system standby control, monitoring, and auxiliary management circuits.
  • Titanium efficiency helps reduce conversion loss and supports better energy utilization during continuous operation.
  • FR airflow direction supports standard front-to-rear rack cooling designs.
  • 265 mm long-body CRPS structure requires careful confirmation of chassis compatibility before selection.
  • 0°C to 55°C operating temperature supports stable use in controlled server and equipment-room environments.

INSTALLATION

Installation and operating guidance.

Confirm electrical compatibility, thermal clearance, mechanical fit, and system load before integration.

Installation / Operation Item Guidance
Chassis Fitment Confirm the system supports the 265 × 73.5 × 40 mm long-body CRPS form factor
Input Confirmation Verify the required input voltage range with the platform or supplier before final integration
Output Architecture Matching Confirm that the target platform supports 54V main power input and the required standby power configuration
Load Planning Keep long-term operating load within a suitable range to support stable output, efficiency, and service life
Connector Alignment Check PSU connector position, guide rail structure, latch design, and insertion depth before installation
Airflow Direction Make sure the FR airflow direction matches the chassis cooling path
Thermal Clearance Keep intake and exhaust areas open to avoid heat accumulation around the PSU bay
Routine Maintenance Check fan condition, dust buildup, connector status, and system thermal behavior during regular service

FAQ

Frequently asked questions about CRPS3000CL5.

Key answers for specification matching, installation planning, and system integration.

What type of power supply is the CRPS3000CL5?

The CRPS3000CL5 is a 3000W Titanium CRPS power supply designed for 54V long-body server platforms, accelerator-ready infrastructure, modular compute systems, and rack-level high-voltage power distribution.

What is the size of this model?

It uses a long-body CRPS structure with dimensions of 265 × 73.5 × 40 mm.

What output does the CRPS3000CL5 provide?

It provides +54V / 23A, +54V / 45.6A, +54V / 50A, and +54V / 55A main output configurations, together with +12VSB / 2A standby output.

Is this model the same size as standard 185 mm CRPS units?

No. The CRPS3000CL5 uses a 265 mm long-body structure, so chassis compatibility should be confirmed before selection.

What is the main advantage of the CRPS3000CL5?

Its main advantage is the combination of 3000W output capacity, Titanium efficiency, 54V main power architecture, and a long-body CRPS format for compatible high-density infrastructure platforms.

What kind of systems is this model best suited for?

It is best suited for 54V server platforms, accelerator infrastructure, modular compute systems, rack-level high-voltage distribution, and compatible enterprise AI equipment.

What should be confirmed before integrating this PSU into a server platform?

Before integration, confirm the input voltage requirement, 265 mm chassis fit, connector position, 54V output architecture, airflow direction, and system-level thermal design.

Is the CRPS3000CL5 suitable for continuous high-load operation?

Yes. Its 3000W output, Titanium efficiency, FR airflow design, and 0°C to 55°C operating temperature range support continuous use in compatible server and infrastructure systems.
