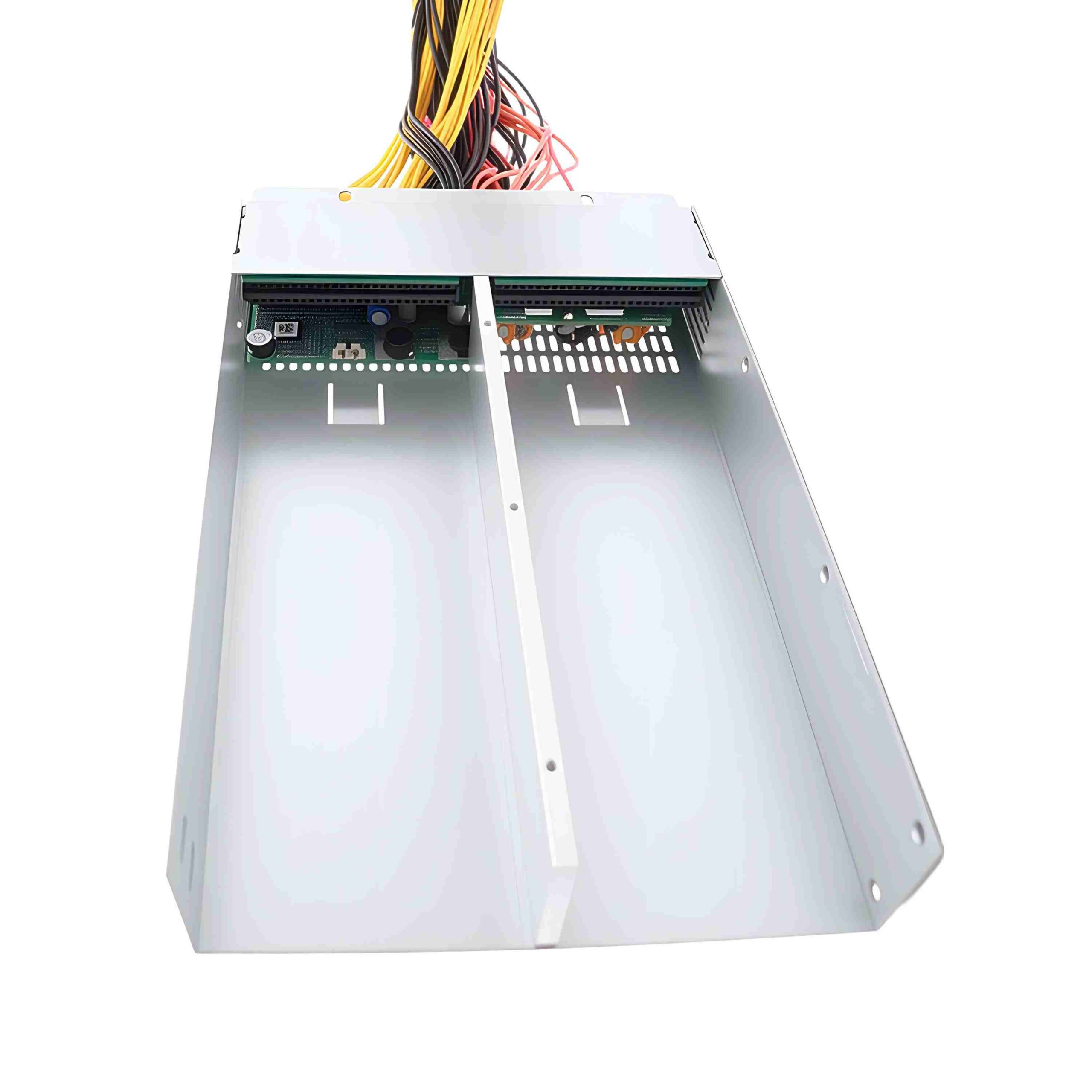

PRODUCT VIEW G1231-1300WNA product image 1

Images are for reference only. Actual product appearance may vary.

01 / 06

G1231-1300WNA

G1231

INQUIRY READY

G1231-1300WNA

Gospower / 1+1 1U PDB / G1231

G1231-1300WNA brings together 1300W capacity for Data Centers, AI Clusters, and High-Density IT Systems, with an emphasis on steady operation across always-on infrastructure.

Output Power (W):
1300
Length (mm):
226
Width (mm):
156
Height (mm):
41.5
Request a Quote ↗

Need compatibility confirmation? Send us your model, label photo, power rating, and connector requirements.

PRODUCT OVERVIEW

Built for reliable, continuous power delivery.

The G1231-1300WNA is suitable for compact but power-demanding systems that require stronger board-level distribution than lower-wattage G1231 models. Its 1300W output capacity and multi-rail design make it a practical fit for data center appliances, AI cluster nodes, enterprise compute systems, storage-accelerated platforms, and high-density network equipment where stable rail distribution, redundancy support, and thermal reliability are important.

Before integrating the G1231-1300WNA, confirm the mating connector or backplane, input source, output-rail requirements, hot-swap sequence, airflow direction, monitoring interface, redundancy behavior, and service clearance against the target platform.

CORE ADVANTAGES

1300W 1U Power Distribution Board for Data Centers, AI Clusters, and High-Density IT Systems

1300W Power Distribution for High-Density Infrastructure The G1231-1300WNA is designed for data center equipment, AI cluster platforms, high-density IT systems, enterprise server appliances, and advanced storage/networking infrastructure that require strong board-level power distribution in a compact 1U layout.

01

1300W Power Distribution for High-Density Infrastructure The G1231-1300WNA is designed for data center equipment, AI cluster platforms, high-density IT systems, enterprise server appliances, and advanced storage/networking infrastructure that require strong board-level power distribution in a compact 1U layout.

02

1U Power Distribution Board Design With a compact 226 × 156 × 41.5 mm form factor, this model supports dense chassis environments where multiple voltage rails must be distributed efficiently across compute boards, storage controllers, accelerator modules, network interfaces, cooling systems, and management circuits.

03

1+1 Redundant Power Architecture The board supports a 1+1 redundant configuration, helping improve system availability in mission-critical equipment where continuous operation, backup power paths, service access, and fault tolerance are important.

04

Multiple High-Current Output Rails The G1231-1300WNA provides +12V, +5V, +3.3V, -12V, and +5V standby outputs, supporting processors, memory subsystems, storage logic, accelerator-assisted boards, interface modules, fans, standby circuits, and auxiliary system electronics.

05

Designed for Data Center, AI, and Enterprise Platforms This power distribution board is suitable for data center nodes, AI cluster systems, high-density server appliances, storage-heavy compute platforms, network aggregation equipment, and compact enterprise infrastructure requiring organized internal power delivery.

06

Built for Reliable System-Level Power Delivery With redundant architecture, high-current multi-rail output support, compact mechanical integration, digital monitoring support, and safety/EMC compliance options, the G1231-1300WNA helps simplify internal power distribution for demanding infrastructure systems.

MODEL SELECTION

Compare Gospower power options.

Review nearby Gospower models and select the power level, output architecture, efficiency grade, and form factor that best match the target system.

Model Power Use Role Input Form Factor Best-Fit Application
G1231-0150WNA 150w Basic multi-rail distribution for control and standby subsystems AC/DC 1+1 PDB BMC boards, fan control circuits, sensor modules, and low-power embedded management units
G1231-0250WNA 250w Redundant PDB for small edge and access-layer hardware AC/DC 1+1 PDB Compact access gateways, small firewall appliances, remote control boxes, and branch network devices
G1231-0350WNA 350w Storage-oriented power distribution for compact data equipment AC/DC 1+1 PDB NAS controllers, backup appliances, edge storage shelves, and lightweight data collection nodes
G1231-0460WNA 460w Mixed-load distribution board for network service appliances AC/DC 1+1 PDB SD-WAN platforms, routing appliances, security gateways, and compact service nodes
G1231-0550WNA 550w Higher-margin PDB for compact compute and storage integration AC/DC 1+1 PDB Micro server clusters, edge hosting boxes, storage-cache appliances, and appliance-based server systems
G1231-0800WNA 800w Integrated power distribution for multi-service edge platforms AC/DC 1+1 PDB Micro data center units, network aggregation appliances, dense NAS platforms, and edge compute-storage systems
G1231-1300WNA 1300w High-capacity PDB for dense appliance and hybrid processing systems AC/DC 1+1 PDB Virtualization appliances, hybrid compute-storage nodes, security service clusters, and edge analytics platforms
G1231-1600WNA 1600w Peak-load redundant PDB for scalable compact infrastructure AC/DC 1+1 PDB Multi-node gateway clusters, high-density appliance racks, edge cloud systems, and scalable service platforms

DEPLOYMENT SCENARIOS

Where G1231-1300WNA fits best.

The G1231-1300WNA is suitable for compact but power-demanding systems that require stronger board-level distribution than lower-wattage G1231 models. Its 1300W output capacity and multi-rail design make it a practical fit for data center appliances, AI cluster nodes, enterprise compute systems, storage-accelerated platforms, and high-density network equipment where stable rail distribution, redundancy support, and thermal reliability are important.

Scenario System Requirement Why G1231-1300WNA Fits
Data Center Nodes Internal power distribution for compute boards, storage logic, management circuits, and fan systems 1300W capacity provides stronger headroom for dense infrastructure workloads
AI Cluster Platforms Stable rail support for accelerator-assisted boards, processors, storage modules, and cooling systems High-current +12V output supports AI-oriented system components
High-Density Server Appliances Power routing for server boards, memory, I/O modules, storage electronics, and standby logic Compact 1U PDB design fits dense server chassis
Storage-Accelerated Systems Continuous power for cache modules, storage controllers, backplane logic, drive-related electronics, and fans Multi-rail output supports data-heavy platform requirements
Network Aggregation Equipment Reliable internal power for switching logic, routing modules, optical interfaces, and monitoring circuits Higher output capacity supports dense networking subsystems
Redundant Enterprise Infrastructure Backup power path support for systems requiring improved service continuity 1+1 redundant architecture helps strengthen system availability

POWER DESIGN

Reliability notes for continuous operation.

The G1231-1300WNA is built for compact data center, AI, enterprise, storage, and networking systems where internal power distribution, multiple output rails, and redundant architecture are critical to system reliability. Its 1U board layout helps system designers distribute several voltage rails inside dense chassis while supporting 1+1 redundancy for improved uptime and service continuity.

  • 1300W power distribution capacity supports data center nodes, AI cluster platforms, high-density server appliances, storage-accelerated systems, network aggregation equipment, and redundant enterprise infrastructure.
  • 1+1 redundant design helps improve power availability by supporting backup power path architecture in compatible chassis.
  • +12V output at 108A supports main system loads, processor boards, accelerator-assisted modules, network cards, storage-related components, cooling devices, and board-level power distribution.
  • +5V output at 25A supports logic circuits, storage electronics, interface boards, auxiliary modules, and control-related components.
  • +3.3V output at 25A supports low-voltage digital circuits, embedded logic, communication modules, and onboard electronic devices.
  • -12V output at 0.5A supports legacy or auxiliary signal requirements in compatible system designs.
  • +5V standby output at 3A supports standby logic, management controllers, monitoring circuits, and system wake functions.
  • Compact 226 × 156 × 41.5 mm mechanical design supports dense 1U chassis and space-restricted internal layouts.

INSTALLATION

Installation and operating guidance.

Confirm electrical compatibility, thermal clearance, mechanical fit, redundancy requirements, and system load before integration.

Installation / Operation Item Guidance
System Role Check Confirm that the target system requires a power distribution board rather than a standalone CRPS power supply module
Redundancy Planning Verify that the chassis and upstream power modules support the intended 1+1 redundant configuration
Chassis Fitment Confirm the 226 × 156 × 41.5 mm mechanical size before installation
Output Rail Matching Check +12V, +5V, +3.3V, -12V, and +5V standby requirements against the target system load
Load Budget Review Calculate total board-level demand from compute boards, storage logic, accelerator modules, network cards, fan systems, standby circuits, and control components
Connector Compatibility Confirm connector layout, pin definition, cable harness design, and mating interface before integration
Thermal Layout Ensure sufficient airflow around the board, cable harnesses, power paths, and nearby heat-generating components
System Validation Test startup behavior, standby function, redundancy behavior, rail stability, thermal performance, and load response before deployment

FAQ

Frequently asked questions about G1231-1300WNA.

Key answers for specification matching, installation planning, and system integration.

What type of product is the G1231-1300WNA?

The G1231-1300WNA is a 1300W 1U power distribution board designed for data center nodes, AI cluster platforms, high-density server appliances, storage-accelerated systems, and network aggregation equipment.

What is the size of this model?

This model uses a compact 1U board structure with a size of 226 × 156 × 41.5 mm, making it suitable for dense system layouts and space-constrained chassis designs.

What systems is this model suitable for?

It is suitable for data center equipment, AI infrastructure, enterprise server appliances, storage-heavy compute platforms, high-density network systems, and compact mission-critical infrastructure.

Does the G1231-1300WNA support redundant power design?

Yes. The board supports a 1+1 redundant configuration, helping improve power availability in compatible system architectures.

What output rails does this board provide?

The G1231-1300WNA provides multiple output rails, including +12V at 108A, +5V at 25A, +3.3V at 25A, -12V at 0.5A, and +5V standby at 3A.

Why is this model suitable for AI cluster platforms?

Its 1300W capacity and high-current +12V output can support processors, accelerator-assisted boards, storage modules, network interfaces, management logic, standby functions, and cooling systems in compact AI-oriented equipment.

What makes this model different from the G1231-0800WNA?

Compared with the G1231-0800WNA, the G1231-1300WNA provides higher overall power distribution capacity and a stronger +12V rail, making it better suited for data center nodes, AI cluster platforms, storage-accelerated systems, and high-density enterprise infrastructure.

What should be checked before integrating this board?

Confirm the chassis size, connector interface, output rail requirements, total load budget, redundancy design, cable harness layout, airflow path, thermal margin, and system-level compatibility before integration.
