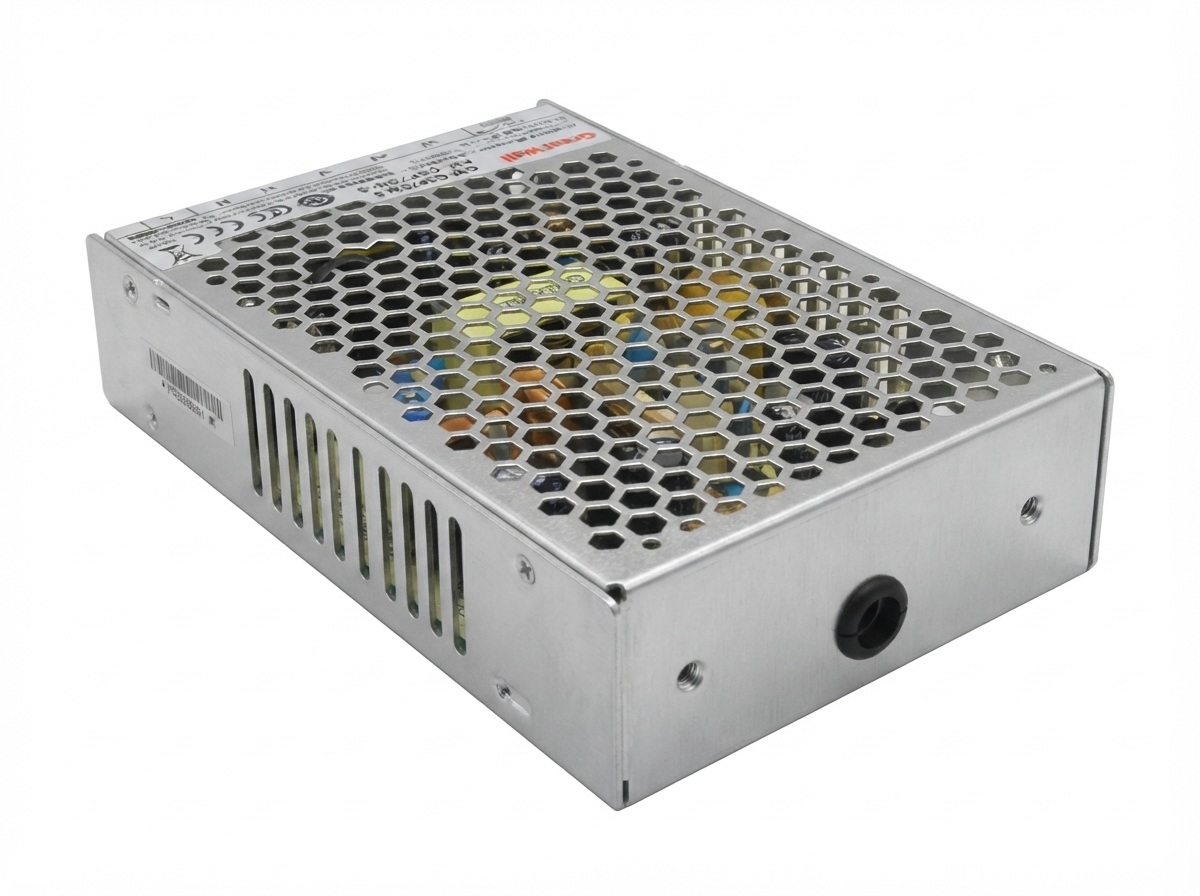

PRODUCT VIEW GW-GSP100W-5 product image 1

Images are for reference only. Actual product appearance may vary.

01 / 06

GW-GSP100W-5

GSP series

INQUIRY READY

GW-GSP100W-5

Greatwall / Industrial Power Supply / GSP series

GW-GSP100W-5 offers 75W capacity and natural convection to Multi-Protection Safe & Reliable, Control Systems, Test Equipment, Specialized Electronics, and Security Devices. That balance supports consistent performance where uptime and maintainability matter.

Model
GW-GSP100W-5
Product Type
Enclosed AC-DC Power Supply
Rated Output Power
75W
AC Input Voltage
90–264Vac
Request a Quote ↗

Need compatibility confirmation? Send us your model, label photo, power rating, and connector requirements.

PRODUCT OVERVIEW

Built for reliable, continuous power delivery.

The GW-GSP100W-5 is intended for systems requiring a stable, high-current 5V supply in a compact enclosed format. Its active PFC, natural cooling, dual isolated output design, and wide operating-temperature range make it suitable for embedded, industrial, display, and test-system integration. For this 75W capacity, installation planning should account for ambient temperature, pressure drop, service access, and the electrical limits of the surrounding platform. System validation should cover standby behavior, load transitions, protection recovery, and monitoring compatibility under expected operating conditions.

Plan the GW-GSP100W-5 output wiring around the actual current demand: keep conductors short, use low-resistance terminations, separate power paths from sensitive signal wiring, and preserve access for retightening and inspection. Arrange the enclosure so heat from neighboring components cannot collect around the supply or its connection points.

Qualify the GW-GSP100W-5 at several load levels, measuring voltage at both the supply terminals and the equipment input rather than relying only on no-load readings. Record cable drop, connector temperature, and enclosure temperature as baseline values. Later maintenance checks can compare against this record to identify loose joints, rising contact resistance, or deteriorating heat dissipation before they interrupt service.

CORE ADVANTAGES

75W 5V Enclosed AC-DC Power Supply for Embedded Control, LED Systems, Industrial Electronics, and Dual-Output Applications

The GW-GSP100W-5 provides a regulated 5V / 15A output , delivering up to 75W for embedded control boards, LED controllers, industrial electronics, communication modules, and other low-voltage equipment requiring substantial output current.

01

75W High-Current DC Power Capacity

The GW-GSP100W-5 provides a regulated 5V / 15A output , delivering up to 75W for embedded control boards, LED controllers, industrial electronics, communication modules, and other low-voltage equipment requiring substantial output current.

02

Compact 159 × 97 × 30 mm Enclosed Structure

Built in a compact 159 × 97 × 30 mm metal enclosure , this model is suitable for control cabinets, integrated equipment, test systems, display controllers, and installations where available mounting space is limited.

03

Universal 90–264Vac Input Compatibility

It supports a wide 90–264Vac input range , allowing reliable operation across different regional power grids without manual voltage selection and simplifying international equipment deployment.

04

Active PFC with Dual Isolated DC Output Design

Built-in active PFC improves input power utilization, while the dual isolated DC output design supports applications requiring electrically separated low-voltage output paths within the same equipment platform.

05

Natural Cooling and Low-Ripple Output

The GW-GSP100W-5 uses natural convection cooling , eliminating the need for an integrated fan. Its low-ripple and low-noise output helps maintain stable operation for sensitive control boards, processors, signal circuits, and display electronics.

06

Reliable Operation in Demanding Environments

With a -30°C to +70°C operating temperature range , 4242Vdc isolation, adjustable output voltage, and short-circuit, overcurrent, overvoltage, and overtemperature protection, this model supports dependable industrial and commercial operation.

MODEL SELECTION

Compare Greatwall industrial power options.

Review nearby Greatwall models and select the output voltage, power level, and integration profile that best match the target system.

Model Output Voltage Rated Current Rated Power Best-Fit Application
GW-GSP100W-5 5Vdc 20A 100W High-current embedded boards, LED control electronics, industrial interfaces, and low-voltage power systems
GW-GSP100W-12 12Vdc 8.3A 100W Communication devices, security equipment, embedded computers, and general-purpose 12V electronics
GW-GSP100W-15 15Vdc 6.7A 100W Test instruments, signal-processing equipment, specialized controllers, and dedicated 15V circuits
GW-GSP100W-24 24Vdc 4.2A 100W PLC systems, sensors, relays, actuators, and industrial automation equipment
GW-GSP100W-27 27Vdc 3.7A 100W RF modules, communication terminals, monitoring devices, and specialized 27V electronics
GW-GSP100W-48 48Vdc 2.1A 100W Telecom equipment, industrial gateways, distributed DC systems, and network infrastructure

DEPLOYMENT SCENARIOS

Where GW-GSP100W-5 fits best.

The GW-GSP100W-5 is intended for systems requiring a stable, high-current 5V supply in a compact enclosed format. Its active PFC, natural cooling, dual isolated output design, and wide operating-temperature range make it suitable for embedded, industrial, display, and test-system integration.

Deployment Scenario Application Description
Embedded Control Boards Powers processors, carrier boards, interface modules, and low-voltage peripheral circuits
LED Display Controllers Supplies stable 5V power to LED control cards, display modules, and information-panel electronics
Industrial HMI Systems Supports operator panels, touchscreen controllers, and compact industrial computing interfaces
Test and Measurement Equipment Provides regulated power for test fixtures, laboratory instruments, and electronic validation systems
Communication Electronics Powers gateways, communication boards, protocol interfaces, and low-voltage network modules
Dual-Output Equipment Suitable for systems requiring two electrically isolated DC output paths within one integrated platform

POWER DESIGN

Reliability notes for continuous operation.

The GW-GSP100W-5 uses an active-PFC input stage and a single-ended flyback conversion topology to convert universal AC input into a regulated 5V DC output. Its high-current output capability supports low-voltage electronic loads, while the natural-convection design enables quiet, fanless operation.

  • The dual isolated DC output structure can support equipment architectures requiring electrical separation between output paths. Because the supplied data does not specify the individual current allocation of each isolated output, system designers should confirm channel-level loading requirements before final integration.
  • Key reliability features include:
  • · Active PFC with single-ended flyback conversion
  • · Dual isolated DC output architecture
  • · Natural-convection fanless cooling
  • · Low-ripple and low-noise regulated 5V output
  • · Adjustable output voltage with LED status indication
  • · Comprehensive SCP, OCP, OVP, and OTP protection
  • · 100% high-temperature burn-in and 5G vibration testing
  • · Conformal-coated PCB with operation support up to 5,000 meters
  • · Design aligned with IEC, EN, and UL 62368 safety requirements

INSTALLATION

Installation and operating guidance.

Confirm electrical compatibility, thermal clearance, mechanical fit, and system load before integration.

Item Installation Recommendation
AC Input Connection Confirm the live, neutral, and protective-earth terminals before applying power
DC Output Connection Verify the polarity and function of each isolated output path before connecting the load
Cable Selection Use output wiring capable of safely carrying the required current, up to the full 15A rating
Screw-Terminal Tightening Tighten all terminals securely to reduce contact resistance and localized heating
Grounding Connect the protective-earth terminal to a reliable equipment ground
Natural Cooling Install the unit where air can circulate freely through and around the enclosure
Installation Clearance Keep sufficient space from heat sources, solid panels, and components that may block convection
Output Adjustment Use a calibrated multimeter when making minor output-voltage adjustments
Load Capacity Keep the combined continuous load within the rated 75W output limit
Output Allocation Confirm the permitted current distribution between the two isolated DC outputs
High-Temperature Operation Consider improved enclosure airflow or load derating near the upper temperature limit
Maintenance Disconnect the AC input and allow stored energy to discharge before inspection or servicing

FAQ

Frequently asked questions about GW-GSP100W-5.

Key answers for specification matching, installation planning, and system integration.

What type of power supply is the GW-GSP100W-5?

The GW-GSP100W-5 is an enclosed AC-DC switching power supply with active PFC, natural-convection cooling, screw-terminal connections, and dual isolated DC outputs.

What are the dimensions of the GW-GSP100W-5?

Its external dimensions are approximately 159 × 97 × 30 mm.

What input-voltage range does it support?

It supports a universal AC input range of 90–264Vac.

What are its rated output voltage, current, and power?

The supplied specification lists a 5V DC output, a maximum output current of 15A, and a rated output power of 75W.

Why is the model called GW-GSP100W-5 if the listed output is 75W?

The model belongs to the GW-GSP100W product family, but the supplied specification rates this low-voltage 5V version at 5V / 15A, which equals 75W.

Does the power supply require a cooling fan?

No. It is designed for natural-convection cooling. Adequate installation clearance and airflow around the enclosure are still required.

What protection functions are included?

The power supply includes short-circuit, overcurrent, overvoltage, and overtemperature protection.

What is the purpose of the dual isolated DC output design?

It supports equipment requiring two electrically separated DC output paths. The individual output-current allocation should be confirmed before system integration.
