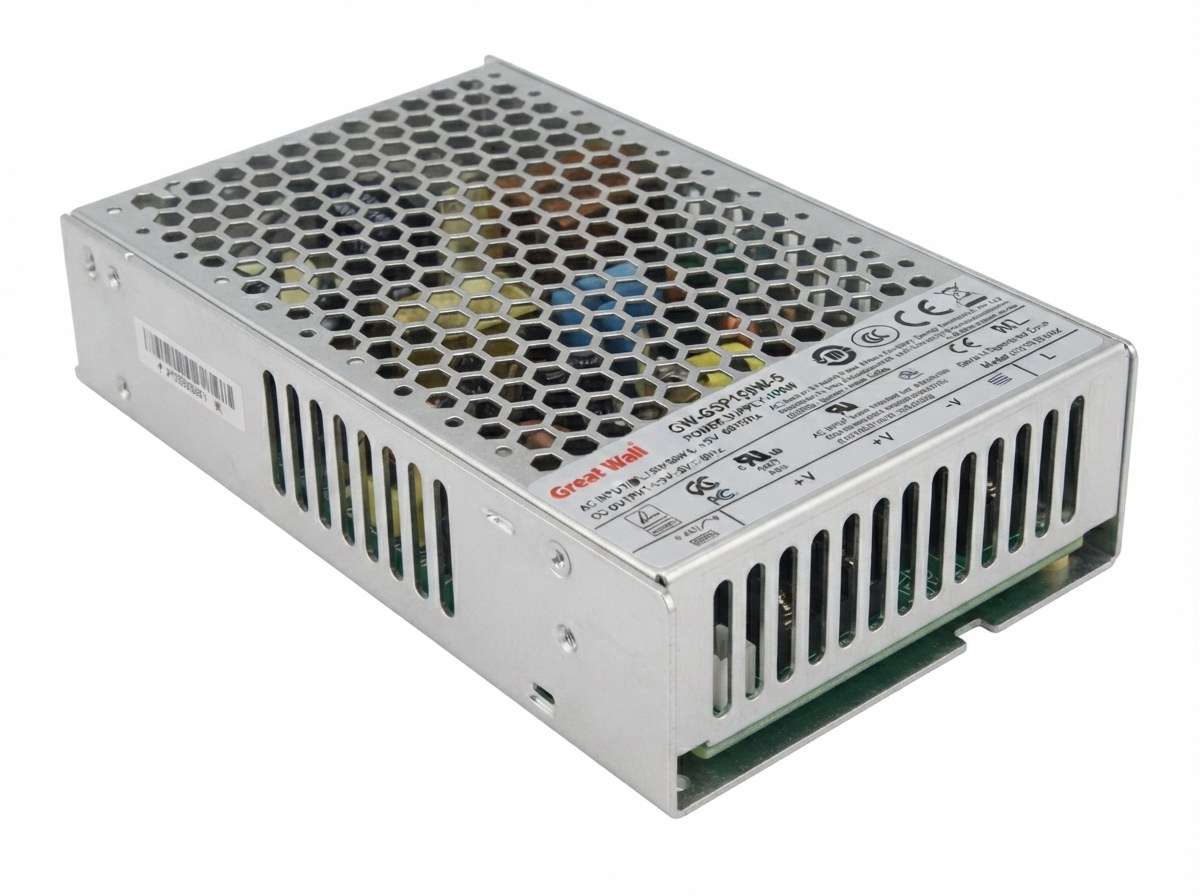

PRODUCT VIEW GW-GSP150W-15 product image 1

Images are for reference only. Actual product appearance may vary.

01 / 06

GW-GSP150W-15

GSP series

INQUIRY READY

GW-GSP150W-15

Greatwall / Industrial Power Supply / GSP series

GW-GSP150W-15 brings together 150W capacity and natural convection for Access Control Systems and Communication Devices, with an emphasis on practical deployment in systems that cannot tolerate unstable power.

Model
GW-GSP150W-15
Product Type
Enclosed AC-DC Power Supply
Rated Output Power
150W
Input Voltage Range
90–264Vac / 127–370Vdc
Request a Quote ↗

Need compatibility confirmation? Send us your model, label photo, power rating, and connector requirements.

PRODUCT OVERVIEW

Built for reliable, continuous power delivery.

The GW-GSP150W-15 is designed for equipment requiring a regulated 15V supply with fanless operation, wide AC/DC input compatibility, and remote power control. Its 10A output capacity and compact enclosed structure make it suitable for laboratory, industrial, inspection, and specialized embedded applications. For this 150W capacity, before integration, confirm the connector mapping, chassis clearance, and supported input conditions against the target power shelf.

Plan the GW-GSP150W-15 output wiring around the actual current demand: keep conductors short, use low-resistance terminations, separate power paths from sensitive signal wiring, and preserve access for retightening and inspection. Arrange the enclosure so heat from neighboring components cannot collect around the supply or its connection points.

Qualify the GW-GSP150W-15 at several load levels, measuring voltage at both the supply terminals and the equipment input rather than relying only on no-load readings. Record cable drop, connector temperature, and enclosure temperature as baseline values. Later maintenance checks can compare against this record to identify loose joints, rising contact resistance, or deteriorating heat dissipation before they interrupt service.

CORE ADVANTAGES

150W 15V Enclosed AC-DC Power Supply for Test Equipment, Signal Processing, Machine Vision, and Specialized Electronic Systems

The GW-GSP150W-15 delivers up to 150W output power for laboratory instruments, signal-processing equipment, machine-vision controllers, embedded platforms, and other systems requiring a dependable 15V DC power source.

01

150W Stable DC Power Capacity

The GW-GSP150W-15 delivers up to 150W output power for laboratory instruments, signal-processing equipment, machine-vision controllers, embedded platforms, and other systems requiring a dependable 15V DC power source.

02

Slim 179 × 99 × 30 mm Enclosed Structure

Built in a compact 179 × 99 × 30 mm metal enclosure , this model is suitable for installation inside test equipment, inspection systems, communication devices, control cabinets, and other space-limited electronic platforms.

03

Wide AC and DC Input Compatibility

It supports 90–264Vac input and 127–370Vdc input , allowing operation from common international AC grids as well as compatible high-voltage DC distribution systems.

04

Stable 15V / 10A Output Performance

The unit provides a regulated 15V DC output at up to 10A , making it suitable for analog circuits, measurement instruments, image-processing modules, specialized controllers, and other medium-to-high-current 15V loads.

05

Active PFC with Natural-Convection Cooling

Built-in active PFC improves input power utilization, while the fanless natural-convection design reduces acoustic noise and eliminates routine fan maintenance. Its low-ripple output supports stable operation for sensitive downstream electronics.

06

Remote ON/OFF and Comprehensive Protection

With remote ON/OFF control, 4242Vdc isolation , adjustable output voltage, and short-circuit, overcurrent, overvoltage, and overtemperature protection, the GW-GSP150W-15 supports reliable integration into centrally managed equipment.

MODEL SELECTION

Compare Greatwall industrial power options.

Review nearby Greatwall models and select the output voltage, power level, and integration profile that best match the target system.

Model Output Voltage Rated Current Rated Power Best-Fit Application
GW-GSP150W-5 5Vdc 30A 150W High-current LED controllers, embedded boards, industrial HMI equipment, and low-voltage control electronics
GW-GSP150W-12 12Vdc 12.5A 150W Communication terminals, security equipment, embedded computers, and general-purpose 12V systems
GW-GSP150W-15 15Vdc 10A 150W Test instruments, analog circuits, signal-conditioning modules, and specialized electronic equipment
GW-GSP150W-24 24Vdc 6.25A 150W PLC systems, industrial sensors, relays, actuators, and automation equipment
GW-GSP150W-27 27Vdc 5.56A 150W RF communication modules, monitoring devices, calibration systems, and dedicated 27V electronics
GW-GSP150W-48 48Vdc 3.13A 150W Telecom equipment, industrial networking, remote communication, and distributed 48V systems

DEPLOYMENT SCENARIOS

Where GW-GSP150W-15 fits best.

The GW-GSP150W-15 is designed for equipment requiring a regulated 15V supply with fanless operation, wide AC/DC input compatibility, and remote power control. Its 10A output capacity and compact enclosed structure make it suitable for laboratory, industrial, inspection, and specialized embedded applications.

Deployment Scenario Application Description
Test and Measurement Equipment Powers electronic loads, calibration fixtures, oscilloscopes, data-acquisition equipment, and laboratory instruments
Signal-Processing Systems Supplies stable 15V power to analog front ends, amplifiers, conditioning circuits, and processing modules
Machine-Vision Equipment Supports industrial cameras, illumination controllers, image processors, and automated inspection systems
Specialized Embedded Systems Powers processor boards, carrier modules, interface electronics, and dedicated embedded platforms
Medical and Analytical Instruments Suitable for monitoring modules, laboratory analyzers, diagnostic electronics, and precision instrument subsystems
Remote-Controlled Equipment Supports systems using remote ON/OFF control for centralized or automated power management

POWER DESIGN

Reliability notes for continuous operation.

The GW-GSP150W-15 uses an active-PFC input stage and flyback conversion topology to convert a wide AC or high-voltage DC input into a regulated 15V output. Its 10A current capability supports professional electronics with substantial power demand while maintaining a slim mechanical profile.

  • Natural-convection cooling eliminates the need for an integrated fan, reducing acoustic noise and mechanical wear. The remote ON/OFF interface allows compatible host equipment to manage the power state without physically disconnecting the input.
  • Key reliability features include:
  • Active PFC with flyback conversion topology
  • 90–264Vac and 127–370Vdc input compatibility
  • Natural-convection fanless cooling
  • Remote ON/OFF power control
  • Up to 88% conversion efficiency
  • Low-ripple and low-noise regulated 15V output
  • Adjustable output voltage with LED status indication
  • Comprehensive SCP, OCP, OVP, and OTP protection
  • 100% high-temperature burn-in and 5G vibration testing
  • Conformal-coated PCB with operation support up to 5,000 meters
  • Design aligned with IEC, EN, and UL 62368 safety requirements

INSTALLATION

Installation and operating guidance.

Confirm electrical compatibility, thermal clearance, mechanical fit, and system load before integration.

Item Installation Recommendation
AC or DC Input Confirm the input source and connect it only within the specified AC or DC voltage range
DC Input Polarity Verify positive and negative polarity carefully when using the 127–370Vdc input option
Output Connection Confirm the positive and negative 15V output terminals before connecting the load
Cable Selection Use conductors capable of safely carrying the full 10A output current
Terminal Tightening Secure all terminal connections to reduce voltage drop, localized heating, and intermittent contact
Grounding Connect the protective-earth terminal to a reliable equipment ground
Natural Cooling Install the unit where air can circulate freely through and around the enclosure
Installation Clearance Keep adequate spacing from heat sources, solid panels, and airflow obstructions
Output Adjustment Use a calibrated multimeter when making minor output-voltage adjustments
Remote ON/OFF Confirm the required control logic and wiring before connecting the remote-control interface
Load Capacity Keep the continuous system load within the rated 150W output limit
Maintenance Disconnect the input and allow stored energy to discharge before inspection or servicing

FAQ

Frequently asked questions about GW-GSP150W-15.

Key answers for specification matching, installation planning, and system integration.

What type of power supply is the GW-GSP150W-15?

The GW-GSP150W-15 is an enclosed, fanless AC-DC switching power supply with active PFC, high-voltage DC input compatibility, remote ON/OFF control, and a regulated 15V output.

What are the dimensions of the GW-GSP150W-15?

Its external dimensions are approximately 179 × 99 × 30 mm.

What input-voltage ranges does it support?

It supports 90–264Vac input and 127–370Vdc input.

What are its rated output voltage, current, and power?

The unit provides 15V DC, a maximum output current of 10A, and a rated output power of 150W.

Does the GW-GSP150W-15 require a cooling fan?

No. It uses natural-convection cooling. Adequate installation clearance and surrounding airflow are still required for reliable heat dissipation.

What does the remote ON/OFF function do?

It allows compatible host equipment or control circuitry to switch the power output state remotely without mechanically disconnecting the input source.

What protection functions are included?

The power supply includes short-circuit, overcurrent, overvoltage, and overtemperature protection.

What applications are best suited to this model?

It is suitable for test and measurement equipment, signal-processing systems, machine-vision platforms, specialized embedded electronics, analytical instruments, and other systems requiring a regulated 15V supply.
