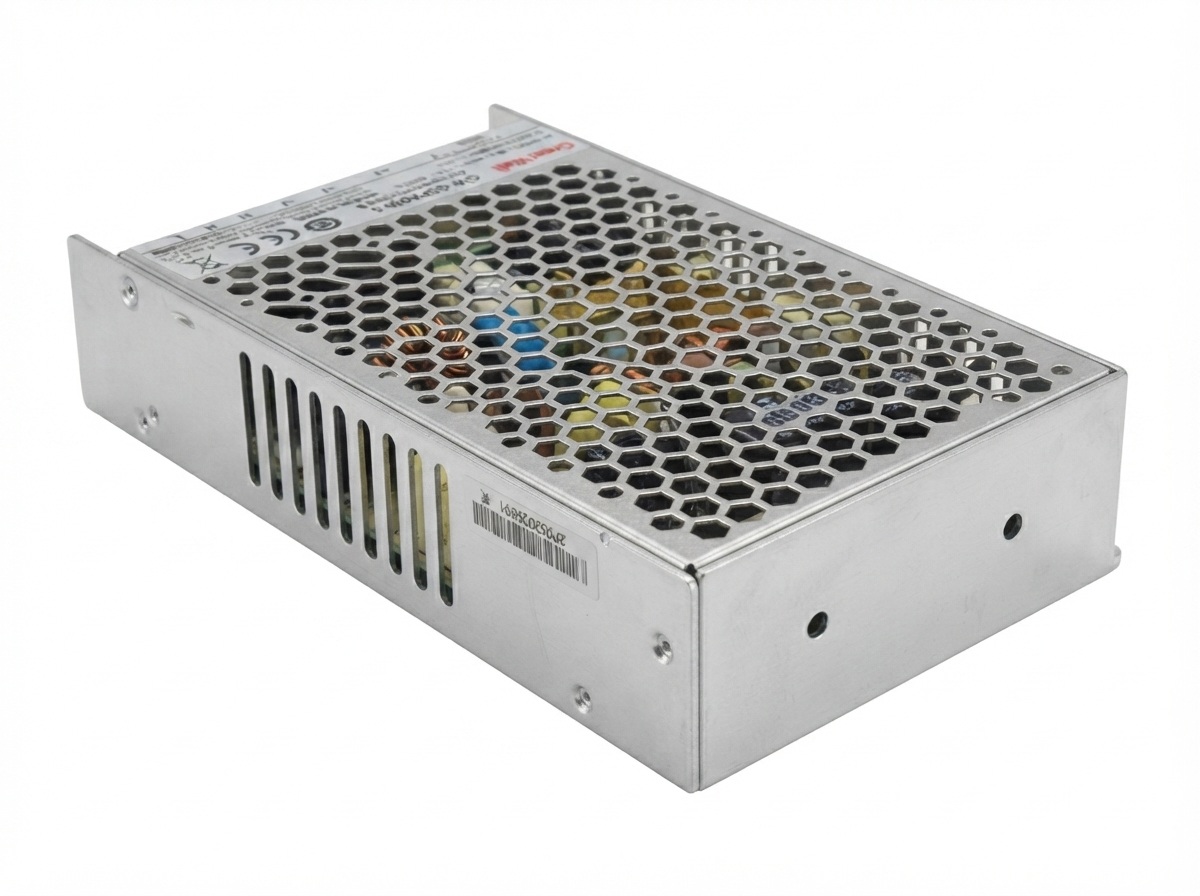

PRODUCT VIEW GW-GSP800W-36 product image 1

Images are for reference only. Actual product appearance may vary.

01 / 06

GW-GSP800W-36

GSP series

INQUIRY READY

GW-GSP800W-36

Greatwall / Industrial Power Supply / GSP series

GW-GSP800W-36 targets Agv Systems, Industrial Actuators, Motor Control Equipment, and Battery-Related Systems and uses 799.2W capacity and built-in dc fan, forced-air cooling to maintain dependable performance across distributed operating sites.

Model
GW-GSP800W-36
Product Type
Enclosed AC-DC Power Supply
Rated Output Power
799.2W
AC Input Voltage
90–264Vac
Request a Quote ↗

Need compatibility confirmation? Send us your model, label photo, power rating, and connector requirements.

PRODUCT OVERVIEW

Built for reliable, continuous power delivery.

The GW-GSP800W-36 is suitable for applications requiring a stable, high-current 36V power rail with adjustable output and remote-control functions. For this 799.2W capacity, allow practical headroom for startup demand and transient loads, while keeping intake and exhaust paths clear throughout continuous operation. Before integration, confirm the connector mapping, chassis clearance, and supported input conditions against the target power shelf.

Plan the GW-GSP800W-36 output wiring around the actual current demand: keep conductors short, use low-resistance terminations, separate power paths from sensitive signal wiring, and preserve access for retightening and inspection. Arrange the enclosure so heat from neighboring components cannot collect around the supply or its connection points.

Qualify the GW-GSP800W-36 at several load levels, measuring voltage at both the supply terminals and the equipment input rather than relying only on no-load readings. Record cable drop, connector temperature, and enclosure temperature as baseline values. Later maintenance checks can compare against this record to identify loose joints, rising contact resistance, or deteriorating heat dissipation before they interrupt service.

CORE ADVANTAGES

799.2W 36V 22.2A High-Power Enclosed AC-DC Power Supply for AGVs, Motion Control, Motor Drives, and Battery Test Systems

The GW-GSP800W-36 delivers a regulated 36V DC output at up to 22.2A , providing approximately 799.2W for industrial motion systems, automated vehicles, actuators, motor-control equipment, and high-power electronic platforms.

01

Stable 36V / 22.2A High-Power Output

The GW-GSP800W-36 delivers a regulated 36V DC output at up to 22.2A , providing approximately 799.2W for industrial motion systems, automated vehicles, actuators, motor-control equipment, and high-power electronic platforms.

02

Universal AC Input with Active PFC

The wide 90–264Vac input range supports operation across common international mains systems. Built-in active PFC improves input-current quality and supports efficient operation under varying load conditions.

03

Efficient Half-Bridge LLC Architecture

Its half-bridge LLC conversion topology provides stable output regulation, efficient switching performance, and dependable continuous-duty operation.

04

Adjustable Voltage and Constant-Current Settings

The output voltage and constant-current value are adjustable, allowing the power supply to accommodate specialized machinery, programmable test equipment, charging-related systems, and customized 36V loads.

05

Remote Control and Monitoring Functions

Remote ON/OFF, remote sensing, auxiliary power, and DC_OK signal output support integration with PLCs, industrial controllers, automated equipment, and intelligent monitoring systems.

06

Forced-Air Cooling and Multiple Protections

A built-in DC fan provides forced-air cooling. OSP, OCP, OVP, and OTP functions, together with low-ripple output, high-temperature burn-in testing, and conformal coating, support reliable long-term operation.

MODEL SELECTION

Compare Greatwall industrial power options.

Review nearby Greatwall models and select the output voltage, power level, and integration profile that best match the target system.

Model Output Voltage Rated Output Power Nominal Output Current Best-Fit Application
GW-GSP800W-5 5V 400W 80A Semiconductor test fixtures, FPGA and ASIC platforms, high-current LED modules, low-voltage embedded systems, and automated electronic test equipment
GW-GSP800W-12 12V 799.2W 66.6A GPU edge systems, machine-vision equipment, storage arrays, industrial computers, and high-current 12V electronic assemblies
GW-GSP800W-15 15V 799.5W 53.3A Precision instruments, industrial imaging systems, optical-control equipment, automated test racks, and regulated 15V electronic platforms
GW-GSP800W-24 24V 799.2W 33.3A PLC cabinets, robotic production equipment, CNC machinery, industrial control systems, and centralized 24V power distribution
GW-GSP800W-27 27V 799.2W 29.6A RF transmitters, broadcast electronics, microwave communication systems, specialized test platforms, and regulated 27V equipment
GW-GSP800W-36 36V 799.2W 22.2A AGV systems, motor drives, industrial actuators, motion-control equipment, battery test platforms, and automated machinery
GW-GSP800W-48 48V Approximately 800W Approximately 16.7A Telecom equipment, network appliances, edge-computing platforms, industrial communication systems, and distributed 48V power infrastructure

DEPLOYMENT SCENARIOS

Where GW-GSP800W-36 fits best.

The GW-GSP800W-36 is suitable for applications requiring a stable, high-current 36V power rail with adjustable output and remote-control functions.

Deployment Scenario Application Description
AGV and Mobile Robotics Powers vehicle controllers, navigation electronics, sensors, communication modules, and auxiliary systems
Motor Drive Equipment Supplies motor-control boards, drive electronics, control interfaces, and industrial motion assemblies
Industrial Actuators Supports electric actuators, positioning systems, automated valves, and mechanical control equipment
Motion-Control Systems Powers servo-control electronics, robotic axes, conveyor controllers, and automated machinery
Battery Test Platforms Supplies battery analyzers, charging-related test equipment, programmable loads, and validation systems
Industrial Automation Supports PLC-controlled machinery, production equipment, inspection systems, and factory control platforms

POWER DESIGN

Reliability notes for continuous operation.

At 36V and 22.2A, output-cable resistance and terminal contact quality can affect voltage stability. Use short, low-resistance conductors and securely tighten all high-current connections.

  • Remote sensing can compensate for voltage drop between the power supply and the load. Sense wires should be connected directly at the load terminals and routed separately from high-current or high-noise wiring.
  • Key design features include:
  • · Universal 90–264Vac input with active power factor correction
  • · Half-bridge LLC power-conversion topology
  • · Regulated 36V, 22.2A output with approximately 800W rated power
  • · Adjustable output voltage and constant-current setting
  • · Built-in DC fan for forced-air cooling
  • · Remote ON/OFF control with remote voltage sensing
  • · Auxiliary power output with DC_OK status signal
  • · Low-ripple, low-noise output with LED status indication
  • · Integrated OSP, OCP, OVP, and OTP protection functions
  • · 100% high-temperature burn-in testing, conformal-coated PCB, and operation support up to 5,000 meters

INSTALLATION

Installation and operating guidance.

Confirm electrical compatibility, thermal clearance, mechanical fit, and system load before integration.

Item Installation Recommendation
AC Input Confirm live, neutral, and protective-earth connections before applying power
Output Polarity Verify the positive and negative 36V terminals before connecting the load
Output Cables Use short, low-resistance conductors rated for at least 22.2A
Terminal Tightening Secure all high-current terminals to prevent resistance and localized heating
Power Distribution Use suitable terminal blocks or busbars when supplying multiple loads
Remote Sensing Connect the sense wires directly at the load terminals
Voltage Adjustment Adjust gradually while monitoring the output with a calibrated meter
Current Adjustment Set the current limit according to the connected equipment requirements
Remote ON/OFF Confirm the controller signal requirements before connection
DC_OK Signal Verify signal voltage and interface compatibility
Fan Clearance Keep the cooling-air intake and exhaust areas unobstructed
Grounding Connect protective earth to a reliable equipment ground
Load Limit Keep continuous operation within 36V, 22.2A, and 799.2W
Maintenance Disconnect AC input and allow stored energy to discharge before servicing

FAQ

Frequently asked questions about GW-GSP800W-36.

Key answers for specification matching, installation planning, and system integration.

What type of power supply is the GW-GSP800W-36?

It is an enclosed AC-DC switching power supply with active PFC, half-bridge LLC conversion, forced-air cooling, adjustable output settings, and remote-control functions.

What are the dimensions of the GW-GSP800W-36?

The enclosure measures approximately 250 × 127 × 41 mm.

What input-voltage range does it support?

It supports a universal AC input range of 90–264Vac.

What are its rated output voltage, current, and power?

It provides 36V DC, a maximum output current of 22.2A, and approximately 799.2W of output power.

Can the output voltage and current limit be adjusted?

Yes. Both the output voltage and constant-current value can be adjusted within the permitted operating range.

Does it support remote sensing?

Yes. Remote sensing helps compensate for voltage loss between the power supply and the connected load.

What control and monitoring functions are available?

The unit supports remote ON/OFF, remote sensing, auxiliary power, and DC_OK signal output.

What protection functions are included?

The GW-GSP800W-36 includes OSP, OCP, OVP, and OTP protection functions.
