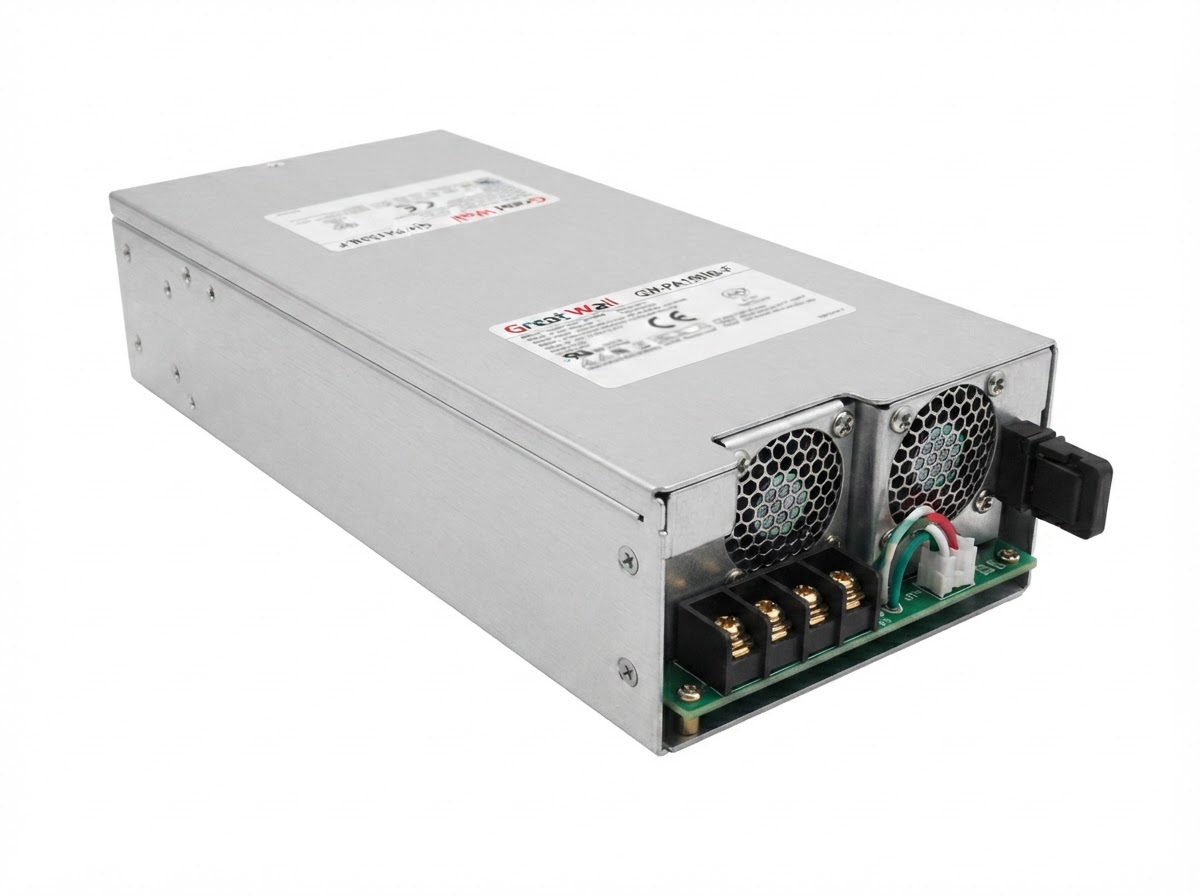

PRODUCT VIEW GW-PA150IB-F product image 1

Images are for reference only. Actual product appearance may vary.

01 / 06

GW-PA150IB-F

Hot Swap

INQUIRY READY

GW-PA150IB-F

Greatwall / Server Power Supply / Hot Swap

GW-PA150IB-F supports the operating demands of Networking Equipment, Industrial Control, Security Systems, Embedded Applications, and Electronic Platforms. With 150W capacity and a stable 12V rail, it enables an installation-ready choice for mission-critical equipment.

Model
GW-PA150IB-F
Series
Hot Swap
Input Voltage
90-290Vac / 192-288Vdc
Output Voltage
12V
Request a Quote ↗

Need compatibility confirmation? Send us your model, label photo, power rating, and connector requirements.

PRODUCT OVERVIEW

Built for reliable, continuous power delivery.

The GW-PA150IB-F is designed for compact 12V systems that require stable power delivery, wide AC / DC input compatibility, and service-friendly hot swap integration. It is suitable for edge gateway devices, compact industrial controllers, access control equipment, small automation terminals, auxiliary cabinet modules, and lightweight infrastructure electronics where 150W output provides a practical balance between compact power and additional operating headroom.

Plan the GW-PA150IB-F output wiring around the actual current demand: keep conductors short, use low-resistance terminations, separate power paths from sensitive signal wiring, and preserve access for retightening and inspection. Arrange the enclosure so heat from neighboring components cannot collect around the supply or its connection points.

Qualify the GW-PA150IB-F at several load levels, measuring voltage at both the supply terminals and the equipment input rather than relying only on no-load readings. Record cable drop, connector temperature, and enclosure temperature as baseline values. Later maintenance checks can compare against this record to identify loose joints, rising contact resistance, or deteriorating heat dissipation before they interrupt service.

CORE ADVANTAGES

150W Hot Swap 12V Power Supply for Compact Industrial Equipment, Edge Gateways, and Auxiliary Infrastructure Systems

The GW-PA150IB-F delivers 150W output for compact 12V systems, small industrial equipment, edge gateway devices, access control hardware, auxiliary cabinet modules, and lightweight infrastructure platforms. Compared with the 70W model in the same Hot Swap series, this model provides additional power headroom while still remaining suitable for compact and low-to-medium power applications.

01

150W Compact Hot Swap Power Output

The GW-PA150IB-F delivers 150W output for compact 12V systems, small industrial equipment, edge gateway devices, access control hardware, auxiliary cabinet modules, and lightweight infrastructure platforms. Compared with the 70W model in the same Hot Swap series, this model provides additional power headroom while still remaining suitable for compact and low-to-medium power applications.

02

Wide AC / DC Input Compatibility

This model supports 90-290Vac / 192-288Vdc input, allowing it to adapt to different AC or DC power environments. The wide input range helps improve deployment flexibility for compact control systems, field devices, industrial cabinets, and infrastructure equipment operating under varied site-level power conditions.

03

Stable 12V Output Architecture

With a 12V output design, the GW-PA150IB-F is suitable for equipment that requires standard low-voltage DC power for control boards, embedded processors, gateway modules, interface circuits, fans, and auxiliary electronics.

04

Hot Swap Structure for Serviceable Equipment

As part of the Hot Swap series, the GW-PA150IB-F supports easier replacement and maintenance in compatible equipment. This is useful for compact systems where service access, modular replacement, and reduced maintenance interruption are important.

05

Practical 150W Capacity for Compact Applications

The 150W rating makes this model suitable for systems that require more power than very low-load 70W applications but do not need 180W, 300W, or higher-capacity power modules. It is a practical choice for compact infrastructure equipment, industrial control devices, edge gateways, and auxiliary 12V platforms.

06

Safety Support for Commercial and Industrial Use

The GW-PA150IB-F supports CCC, CB, and CE, making it suitable for commercial equipment, industrial devices, embedded system projects, and infrastructure applications that require common safety compliance support.

MODEL SELECTION

Compare Greatwall power options.

Review nearby Greatwall models and select the power level, output architecture, and form factor that best match the target system.

Model Power Input Voltage Output Voltage Safety Best-Fit Application
GW-PA70IB 70W 90-290Vac / 192-288Vdc 12V CCC, CB, CE Low-power control boards, embedded devices, monitoring modules, and auxiliary 12V infrastructure equipment
GW-PA150IB-F 150W 90-290Vac / 192-288Vdc 12V CCC, CB, CE Compact industrial equipment, edge gateway devices, access control systems, and auxiliary 12V platforms requiring more headroom than 70W modules
GW-PA180I-F 180W 90-290Vac / 192-290Vdc 12V CCC, CB, CE Compact server systems, embedded 12V platforms, industrial control devices, and hot swap low-power infrastructure
GW-PA300I-F 300W 90-290Vac / 192-290Vdc 12V CCC, CE Mid-power 12V control platforms, compact server nodes, network control devices, and embedded computing systems
GW-PA600I-FS 600W 90-290Vac / 192-288Vdc 12V / 50A; 5V / 2A CCC, CB, CE Mid-power server platforms, storage appliances, network devices, and cabinet systems requiring 12V main output with 5V auxiliary support
GW-PA600I-P-F 600W 90-290Vac / 190-290Vdc 56V CCC, CB, CE Mid-range 56V telecom equipment, PoE infrastructure, distributed power platforms, and industrial communication systems
GW-PA1000I-P-F 1000W 90-290Vac / 192-288Vdc 56V CCC, CB, CE Higher-capacity 56V telecom systems, distributed power equipment, communication cabinets, and infrastructure platforms requiring stronger output headroom
GW-PA1600I 1600W 90-290Vac / 192-288Vdc 12V / 133.4A; 5Vsb / 2A CCC High-current 12V server platforms, storage systems, and larger computing infrastructure requiring standby output
GW-PA2700I 2700W 90-290Vac / 192-288Vdc 54V CCC, CB, CE, UL High-power 54V infrastructure, AI computing systems, telecom power platforms, and dense cabinet-level power distribution environments
GW-PAH3000I-F 3000W 90-290Vac / 188-400Vdc 53.5V CQC, CB, CE High-capacity 53.5V infrastructure, DC power cabinets, power conversion platforms, and heavy-load equipment requiring maximum output capacity

DEPLOYMENT SCENARIOS

Where GW-PA150IB-F fits best.

The GW-PA150IB-F is designed for compact 12V systems that require stable power delivery, wide AC / DC input compatibility, and service-friendly hot swap integration. It is suitable for edge gateway devices, compact industrial controllers, access control equipment, small automation terminals, auxiliary cabinet modules, and lightweight infrastructure electronics where 150W output provides a practical balance between compact power and additional operating headroom.

Scenario System Requirement Why GW-PA150IB-F Fits
Edge Gateway Devices Stable 12V power for gateway boards, communication interfaces, and small edge controllers 150W output provides more headroom than very low-power models while keeping compact integration
Compact Industrial Controllers Reliable DC power for PLC-related modules, control boards, and automation electronics 12V output supports common low-voltage industrial control architecture
Access Control Systems Power support for door controllers, access terminals, interface modules, and local control units Wide input compatibility improves adaptability across different building and site power environments
Small Automation Terminals Stable power for HMI panels, compact controllers, and local machine interface devices 150W capacity is suitable for lightweight automation equipment with moderate power demand
Auxiliary Cabinet Modules Power support for secondary modules inside industrial, communication, or infrastructure cabinets Hot swap structure helps simplify service access in compatible cabinet-mounted equipment
Field Monitoring Equipment Reliable 12V power for data collection units, environmental monitoring devices, and remote control modules Compact 150W output supports continuous low-to-medium load operation

POWER DESIGN

Reliability notes for continuous operation.

The GW-PA150IB-F is built for compact 12V equipment that requires more output headroom than very low-power models while avoiding the size and capacity of larger PSU options. Its 150W rating makes it suitable for small industrial systems, edge gateways, access control equipment, auxiliary modules, and field devices that need stable 12V power and convenient service access.

  • 150W output capacity supports compact industrial controllers, edge gateway devices, access control systems, small automation terminals, field monitoring equipment, and auxiliary cabinet modules.
  • 90-290Vac / 192-288Vdc input provides flexible compatibility for different AC and DC power distribution environments.
  • 12V output architecture supports standard low-voltage control, embedded, gateway, and auxiliary system designs.
  • Hot swap structure helps simplify replacement and supports easier maintenance in compatible equipment.
  • CCC, CB, and CE safety support makes the model suitable for commercial, industrial, and infrastructure-related applications.
  • Compact mid-low power positioning makes this model suitable when 70W capacity is not enough but 180W or 300W models may be unnecessary.
  • Practical system integration helps support equipment designs that require stable output, manageable thermal behavior, and service-friendly installation.
  • Final system validation should confirm GW-PA150IB-F operation under the expected input range, peak load, airflow, ambient temperature, and hot-swap service conditions before deployment.

INSTALLATION

Installation and operating guidance.

Confirm electrical compatibility, thermal clearance, mechanical fit, and system load before integration.

Installation / Operation Item Guidance
Input Voltage Matching Confirm that the target system supports 90-290Vac / 192-288Vdc input before installation
Output Requirement Verify that the equipment requires 12V output and that the system load is within the 150W power range
Load Planning Keep long-term load within a suitable range to support stable output and service life
Chassis Compatibility Make sure the equipment supports the correct hot swap power module structure and installation method
Connector Matching Confirm connector position, electrical interface, output polarity, and system-level compatibility before integration
Application Fit Use this model for compact 12V systems rather than high-current server, storage, or telecom power platforms
Thermal Clearance Keep intake and exhaust areas clear to avoid heat buildup around the PSU bay
Module Installation Ensure the power supply is fully seated and correctly connected before powering on the system
Routine Maintenance Check dust buildup, connector condition, fan behavior, output stability, and system thermal status during regular service

FAQ

Frequently asked questions about GW-PA150IB-F.

Key answers for specification matching, installation planning, and system integration.

What type of power supply is the GW-PA150IB-F?

The GW-PA150IB-F is a 150W Hot Swap power supply designed for compact 12V systems, including edge gateways, compact industrial controllers, access control systems, auxiliary cabinet modules, and lightweight infrastructure equipment.

What input voltage range does this model support?

It supports 90-290Vac / 192-288Vdc input, making it suitable for equipment that may operate in different AC or DC power environments.

What output voltage does the GW-PA150IB-F provide?

The model provides 12V output, which is suitable for many compact control, embedded, gateway, and auxiliary infrastructure applications.

What is the main advantage of the GW-PA150IB-F?

Its main advantage is the combination of 150W compact 12V output, wide AC / DC input compatibility, hot swap service convenience, and CCC, CB, CE safety support.

Is this model suitable for edge gateway or access control equipment?

Yes. Its 150W capacity and 12V output make it suitable for edge gateway devices, access control equipment, compact controllers, and small infrastructure platforms with moderate power demand.

Can this model be used for high-power server systems?

No. The GW-PA150IB-F is designed for compact 12V applications. For higher-load server systems, models such as GW-PA300I-F, GW-PA600I-FS, or GW-PA1600I should be selected depending on the required output capacity.

How should I choose between GW-PA70IB and GW-PA150IB-F?

Choose the GW-PA150IB-F when the system needs more power headroom than the 70W model can provide. Choose GW-PA70IB for very low-power 12V loads where 70W capacity is sufficient.

What should be checked before integrating this PSU into a system?

Before integration, confirm the input voltage range, 12V output requirement, total system load, hot swap mechanical compatibility, connector matching, application power margin, thermal design, and installation clearance.
