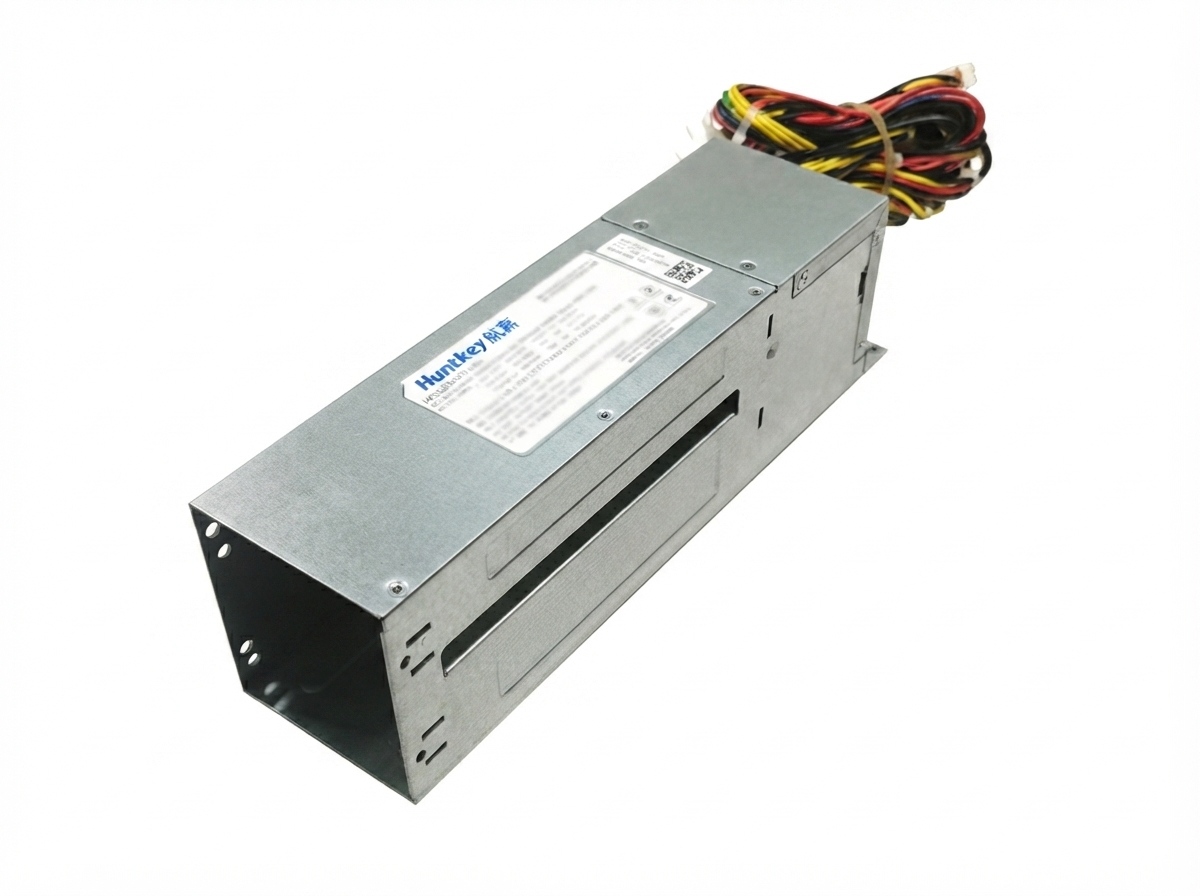

PRODUCT VIEW HK2200R-S1 product image 1

Images are for reference only. Actual product appearance may vary.

01 / 06

HK2200R-S1

Slot Style Power Supply

INQUIRY READY

HK2200R-S1

Huntkey / Slot Style Power Supply

HK2200R-S1 gives High-Power Multi-Output Server Platforms a power platform built around 2200W capacity and 80 PLUS® Platinum, peak efficiency 94.5% conversion efficiency. It is intended for dependable performance across distributed operating sites.

Model
HK2200R-S1
Product Category
Slot Style Power Supply
Rated Power
2200W
Efficiency Level
80 PLUS® Platinum, peak efficiency 94.5%
Request a Quote ↗

Need compatibility confirmation? Send us your model, label photo, power rating, and connector requirements.

PRODUCT OVERVIEW

Built for reliable, continuous power delivery.

The HK2200R-S1 is a high-capacity slot-style power supply built around dual 12V channels and several auxiliary rails. Its 2200W architecture helps complex platforms centralize multi-voltage delivery, reduce separate conversion hardware, and retain a replaceable module structure for ongoing service.

The HK2200R-S1 requires detailed allocation of its dual +12V rails—145A and 108A—alongside +5V, +3.3V, 5VSB, and -12V outputs. Check the 265 × 77 × 84 mm slot envelope, connector pin map, cross-rail limits, I²C monitoring, airflow, protection coordination, and startup sequence with the actual server backplane.

Servers, storage systems, network equipment, and edge computing are the application areas pictured for the HK2200R-S1. Its 2200W multi-rail design is appropriate for heavily populated platforms in those categories, where separate board and peripheral loads must be distributed deliberately and verified during redundancy and thermal testing.

CORE ADVANTAGES

2200W Slot-Style Power Supply for High-Power Multi-Output Server Platforms

The HK2200R-S1 provides 2200W output for server systems that require a high-power slot-style power module with multiple regulated output rails. It is suitable for server platforms where the PSU needs to support dual 12V rails together with auxiliary 5V, 3.3V, 5VSB, and -12V outputs.

01

2200W Slot-Style Power Capacity

The HK2200R-S1 provides 2200W output for server systems that require a high-power slot-style power module with multiple regulated output rails. It is suitable for server platforms where the PSU needs to support dual 12V rails together with auxiliary 5V, 3.3V, 5VSB, and -12V outputs.

02

Multi-Channel Output Architecture

This model provides +12V1 / +12V2 / +5V / +3.3V / 5VSB / -12V multi-channel output. Compared with single-output CRPS models, it is more suitable for server designs that require several direct DC rails from the power module.

03

Platinum-Level Efficiency Design

This series has achieved 80 PLUS® Platinum certification , with peak efficiency up to 94.5% . High efficiency helps reduce power loss and heat generation in server platforms that operate continuously under heavy workloads.

04

Long Slot-Style Structure

With external dimensions of 265 × 77 × 84 mm , the HK2200R-S1 is designed for slot-style server power integration. It is suitable for platforms where the PSU is inserted into a defined power slot instead of a standard CRPS bay.

05

I²C Communication Support

The unit supports I²C communication , allowing compatible server platforms to support power status monitoring, system-level control, and basic PSU communication functions.

06

Built for High-Power Server Deployment

Forced air cooling, IP20 protection level, EN55022 Class A EMI performance, multi-output voltage regulation, and protection features including output overvoltage, undervoltage, overcurrent, short circuit, and overtemperature protection help support stable server operation.

MODEL SELECTION

Compare Huntkey power options.

Review nearby Huntkey models and select the output level and form factor that best match the target system.

Product Category Model Power Output Architecture Efficiency Form Factor Best-Fit Application
Slot Style Power Supply HKS1200A3-S1 1200W +12V / +5V / +3.3V / 5VSB / -12V Platinum Short slot-style Multi-output server platforms and compact slot-based systems
Slot Style Power Supply HK2200R-S1 2200W +12V1 / +12V2 / +5V / +3.3V / 5VSB / -12V Platinum Slot-style High-power multi-output servers, storage platforms, and rack systems
Slot Style Power Supply HK1600R-S1 1600W class Slot-style multi-output server architecture Platinum series Slot-style Enterprise servers, storage systems, and medium-power rack platforms
Slot Style Power Supply HK1200R-S1 1200W class Slot-style multi-output server architecture Platinum series Slot-style Standard server platforms requiring slot-style PSU integration

DEPLOYMENT SCENARIOS

Where HK2200R-S1 fits best.

The HK2200R-S1 is designed for server platforms that need high total output power, multiple DC rails, and slot-style mechanical integration. It is especially suitable for systems where dual 12V output rails are required together with 5V, 3.3V, standby, and -12V outputs for server boards, backplanes, control circuits, storage hardware, and system management functions.

Scenario System Requirement Why HK2200R-S1 Fits
High-Power Server Platforms Strong multi-rail power delivery for system boards, fans, storage, and control circuits 2200W capacity supports higher-load server configurations
Dual 12V Rail Systems Separate 12V power delivery for different server load groups +12V1 145A and +12V2 108A support stronger 12V rail distribution
Storage Server Platforms Power support for controllers, backplanes, drives, and auxiliary rails 5V, 3.3V, and 5VSB outputs support mixed system requirements
Server Backplane Systems Slot-based power insertion and multi-channel rail distribution 265 × 77 × 84 mm slot-style design supports defined PSU bay integration
Rack Server Systems Continuous operation for enterprise and data center server platforms Platinum efficiency and forced air cooling support long-hour deployment
System Monitoring Platforms PSU communication with compatible host systems I²C support helps with power status monitoring and system management

POWER DESIGN

Reliability notes for continuous operation.

The HK2200R-S1 focuses on high-power multi-output server power delivery. Instead of using only one main 12V rail, it provides dual 12V rails plus several auxiliary outputs, making it suitable for server systems that need direct power support for different boards, control circuits, backplanes, and standby functions.

  • 2200W rated output supports high-power server boards, backplanes, storage controllers, cooling fans, and auxiliary system circuits.
  • The main 12V outputs include +12V1 145A and +12V2 108A, supporting stronger rail distribution for server load groups.
  • Auxiliary outputs include +5V 50A, +3.3V 24A, 5VSB 3A, and -12V 0.5A.
  • Voltage regulation accuracy is listed as ≤±5%, with ripple and noise controlled at ≤120mVp-p.
  • Efficiency is listed as ≥94%, with the series reaching peak efficiency of 94.5% under Platinum-level performance.
  • I²C communication supports PSU status communication with compatible server platforms.
  • Protection functions include output overvoltage, output undervoltage, output overcurrent, output short circuit, and overtemperature protection.
  • EMI performance is listed as EN55022 Class A, and forced air cooling helps maintain stable thermal operation.

INSTALLATION

Installation and operating guidance.

The HK2200R-S1 uses an IP20 protection rating and is mainly designed for server applications. Because this model provides multiple output rails, system designers should evaluate each rail separately instead of judging suitability only by total rated power.

Installation / Operation Item Guidance
Input Matching Confirm the system input supply matches the required 11.4–12.6Vdc input range
Rail Load Planning Match server board and backplane requirements with +12V1, +12V2, +5V, +3.3V, 5VSB, and -12V outputs
Chassis Fitment Confirm the 265 × 77 × 84 mm external dimensions before slot-style integration
Communication Setup Use I²C communication only with compatible system monitoring and control designs
Thermal Clearance Keep intake and exhaust channels open to support forced air cooling under high-load operation
Operating Environment Keep air temperature within 0–55°C and relative humidity within 5%–95%, with no condensation
Storage Condition For storage and transportation, keep within -40°C to 70°C and 5%–100% RH
Protection Review Confirm system-level fault handling for overvoltage, undervoltage, overcurrent, short circuit, and overtemperature events

FAQ

Frequently asked questions about HK2200R-S1.

Key answers for specification matching, installation planning, and system integration.

What type of power supply is the HK2200R-S1?

The HK2200R-S1 is a 2200W slot-style power supply designed for server platforms that require high-power multi-output DC power delivery.

What is the size of this model?

It has external dimensions of 265 × 77 × 84 mm , making it suitable for slot-style server power integration.

What input voltage range does it support?

The HK2200R-S1 supports 11.4–12.6Vdc input and an input current listed as ≤14A .

What output does the HK2200R-S1 provide?

It provides +12V1 145A , +12V2 108A , +5V 50A , +3.3V 24A , 5VSB 3A , and -12V 0.5A multi-channel output.

How is this model different from standard CRPS power supplies?

The HK2200R-S1 uses a slot-style structure and provides multiple direct DC output rails, while many CRPS server power supplies mainly use a single +12V output architecture.

Why does this model use dual 12V outputs?

Dual 12V outputs allow server platforms to separate higher-current load groups, such as system boards, processors, fans, storage hardware, or backplane power distribution.

Does it support communication with the server system?

Yes. It supports I²C communication , which can be used for power status monitoring and system-level management in compatible platforms.

What protection features are included?

It includes output overvoltage, output undervoltage, output overcurrent, output short circuit, and overtemperature protection.
