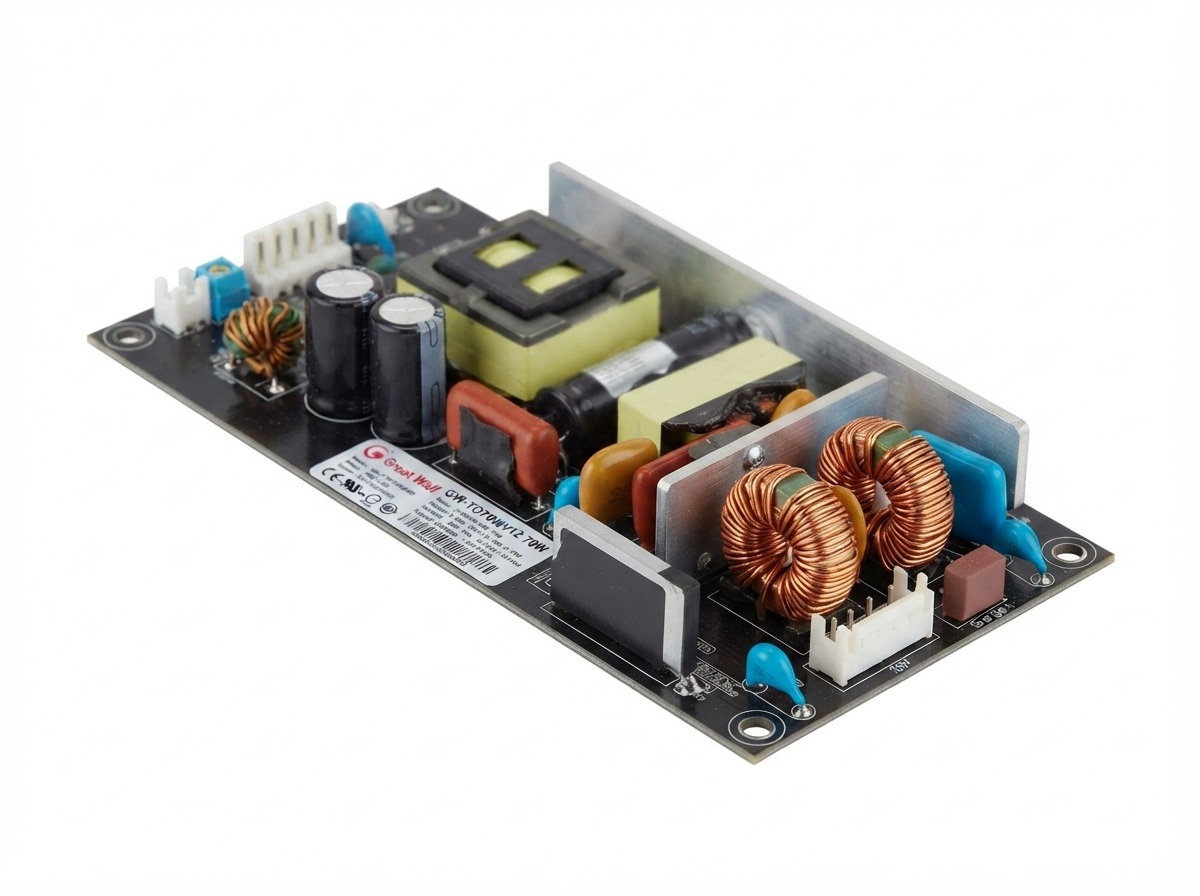

PRODUCT VIEW GW-TO40WV12 product image 1

Images are for reference only. Actual product appearance may vary.

01 / 06

GW-TO40WV12

Open Frame

INQUIRY READY

GW-TO40WV12

Greatwall / Server Power Supply / Open Frame

GW-TO40WV12 brings together 40W capacity and a stable 12V rail for Embedded Systems, Industrial Control, Security Equipment, and Communication Devices, with an emphasis on dependable performance across distributed operating sites.

Model
GW-TO40WV12
Series
Open Frame
Input Voltage
90-290Vac / 192-288Vdc
Output Voltage
12V
Request a Quote ↗

Need compatibility confirmation? Send us your model, label photo, power rating, and connector requirements.

PRODUCT OVERVIEW

Built for reliable, continuous power delivery.

GW-TO40WV12 is suitable for compact electronic equipment that requires stable 12V DC output and internal power integration. It can be used in embedded devices, industrial control modules, communication terminals, security equipment, monitoring systems, and OEM products where moderate 12V power capacity and compact installation are required.

Plan the GW-TO40WV12 output wiring around the actual current demand: keep conductors short, use low-resistance terminations, separate power paths from sensitive signal wiring, and preserve access for retightening and inspection. Arrange the enclosure so heat from neighboring components cannot collect around the supply or its connection points.

Qualify the GW-TO40WV12 at several load levels, measuring voltage at both the supply terminals and the equipment input rather than relying only on no-load readings. Record cable drop, connector temperature, and enclosure temperature as baseline values. Later maintenance checks can compare against this record to identify loose joints, rising contact resistance, or deteriorating heat dissipation before they interrupt service.

CORE ADVANTAGES

40W Open Frame Power Supply

GW-TO40WV12 provides 40W rated output in an open frame structure. It is suitable for compact equipment where internal installation flexibility, board-level integration, and efficient use of enclosure space are important.

01

Compact 40W Open Frame Design

GW-TO40WV12 provides 40W rated output in an open frame structure. It is suitable for compact equipment where internal installation flexibility, board-level integration, and efficient use of enclosure space are important.

02

Stable 12V DC Output

The model delivers 12V output, which is commonly used in embedded controllers, small industrial devices, communication modules, security terminals, monitoring equipment, and low-power electronic platforms.

03

Wide AC/DC Input Support

With 90-290Vac / 192-288Vdc input capability, GW-TO40WV12 can adapt to different power environments. This makes it useful for equipment manufacturers that need one power platform for multiple markets or installation conditions.

04

Practical Mid-Range 12V Capacity

Compared with GW-TO25WV12, this model provides additional output margin for devices with slightly higher load demand. It is a practical option for compact 12V systems that need more power than small auxiliary boards but still require a small open frame solution.

05

Safety Standard Support

GW-TO40WV12 lists CCC / CB / CE safety standards, providing useful compliance references for manufacturers developing products for domestic and international applications.

06

OEM Integration Flexibility

The open frame format supports direct integration inside protected OEM equipment and compact electronic assemblies. Engineers can arrange the mounting position, wiring, insulation clearance, and airflow to match the final enclosure and operating environment.

MODEL SELECTION

Compare Greatwall power options.

Review nearby Greatwall models and select the power level, output architecture, and form factor that best match the target system.

Model Input Voltage Output Voltage Safety Watt Recommended Application
GW-TO25WV12 90-290Vac / 192-288Vdc 12V CCC / CB / CE 25W Small control boards, compact terminals, auxiliary electronics, and low-power 12V devices
GW-TO40WV12 90-290Vac / 192-288Vdc 12V CCC / CB / CE 40W Compact 12V embedded systems, light industrial equipment, security devices, and control modules
GW-TO70WV12 90-290Vac / 192-288Vdc 12V CCC / CB / CE 70W Medium-low power 12V systems requiring wide input support and compact integration
GW-TO70WV54 90-290Vac / 192-288Vdc 54V CCC / CB / CE 70W Compact 54V communication terminals, PoE-related devices, and distributed DC equipment
GW-TO150WV54 90-290Vac / 192-288Vdc 54V CCC / CB / CE 150W Higher-load 54V communication equipment, PoE power platforms, and industrial DC systems
GW-TO409WV12 90-290Vac / 190-290Vdc 54V CCC / CB / CE 409W High-power 54V telecom, industrial control, distributed DC power, and embedded equipment
GW-TO460WV12 90-290Vac / 190-290Vdc 54V CCC / CB / CE 460W Maximum-power option in this Open Frame group for demanding 54V equipment platforms

DEPLOYMENT SCENARIOS

Where GW-TO40WV12 fits best.

GW-TO40WV12 is suitable for compact electronic equipment that requires stable 12V DC output and internal power integration. It can be used in embedded devices, industrial control modules, communication terminals, security equipment, monitoring systems, and OEM products where moderate 12V power capacity and compact installation are required.

Scenario Application Value
Embedded Systems Provides stable 12V power for compact embedded controllers, processor boards, and small computing devices
Industrial Control Modules Suitable for control boards, automation terminals, signal modules, and light-load industrial electronics
Communication Devices Can support compact gateways, routers, communication accessories, and small network terminals
Security Equipment Useful for access control systems, monitoring terminals, camera-related equipment, and alarm devices
OEM Electronic Equipment Helps manufacturers integrate a 40W open frame power module into customized equipment enclosures

POWER DESIGN

Reliability notes for continuous operation.

GW-TO40WV12 is designed for compact systems where 12V output, moderate power capacity, and flexible installation are required. Its 40W rating gives more margin than 25W models while keeping the product suitable for small equipment platforms. This makes it useful for devices that need stable internal power but do not require a higher-wattage solution.

Design Point Recommendation
Load Planning Keep the system load within the 40W rating and reserve suitable operating margin
Voltage Matching Confirm that the final equipment is designed for 12V DC input before installation
Thermal Management Leave enough space around heat-generating components and avoid blocking airflow
Electrical Safety Maintain proper clearance and insulation inside the final enclosure
Mechanical Fixing Secure the PCB properly to reduce vibration, movement, and connector stress
System Validation Test the complete equipment under real operating load before batch deployment

INSTALLATION

Installation and operating guidance.

Confirm electrical compatibility, thermal clearance, mechanical fit, and system load before integration.

Item Guidance
Installation Position Install inside a protected equipment enclosure, control box, cabinet, or host system
Input Check Confirm AC/DC input conditions before powering on
Output Check Verify 12V output polarity and load compatibility before connection
Load Capacity Ensure the connected system load does not exceed the 40W rated output
Ventilation Keep airflow paths open and avoid covering heat-generating components
Safety Protection Prevent direct user contact with exposed circuits after final assembly
Maintenance Check dust buildup, loose wiring, abnormal temperature, and component aging during regular service

FAQ

Frequently asked questions about GW-TO40WV12.

Key answers for specification matching, installation planning, and system integration.

What type of equipment is GW-TO40WV12 suitable for?

GW-TO40WV12 is suitable for embedded systems, industrial control modules, communication terminals, security equipment, monitoring devices, and OEM electronics that require 12V output with 40W power capacity.

What is the output voltage of GW-TO40WV12?

GW-TO40WV12 provides 12V DC output, which is commonly used in control boards, embedded devices, communication modules, and compact electronic equipment.

What input voltage range does this model support?

GW-TO40WV12 supports 90-290Vac / 192-288Vdc, making it suitable for wide AC input and compatible DC input environments.

Is GW-TO40WV12 an open frame power supply?

Yes. It is an open frame power supply designed for internal installation inside protected equipment enclosures, cabinets, or device housings.

How is GW-TO40WV12 different from GW-TO25WV12?

Both models provide 12V output, but GW-TO40WV12 offers 40W capacity, while GW-TO25WV12 offers 25W capacity. GW-TO40WV12 is better for compact systems that need more output margin.

When should I choose GW-TO40WV12 instead of GW-TO70WV12?

Choose GW-TO40WV12 when your system requires 12V output and moderate power capacity. Choose GW-TO70WV12 when the load is higher or when more power margin is needed.

What should engineers check before using this model?

Engineers should confirm input voltage, 12V load compatibility, total power consumption, wiring safety, airflow, insulation distance, and final enclosure protection.

Can GW-TO40WV12 be used in security or monitoring equipment?

Yes. Its 12V output and 40W capacity make it suitable for many compact security terminals, access control devices, monitoring systems, and camera-related electronic platforms.
