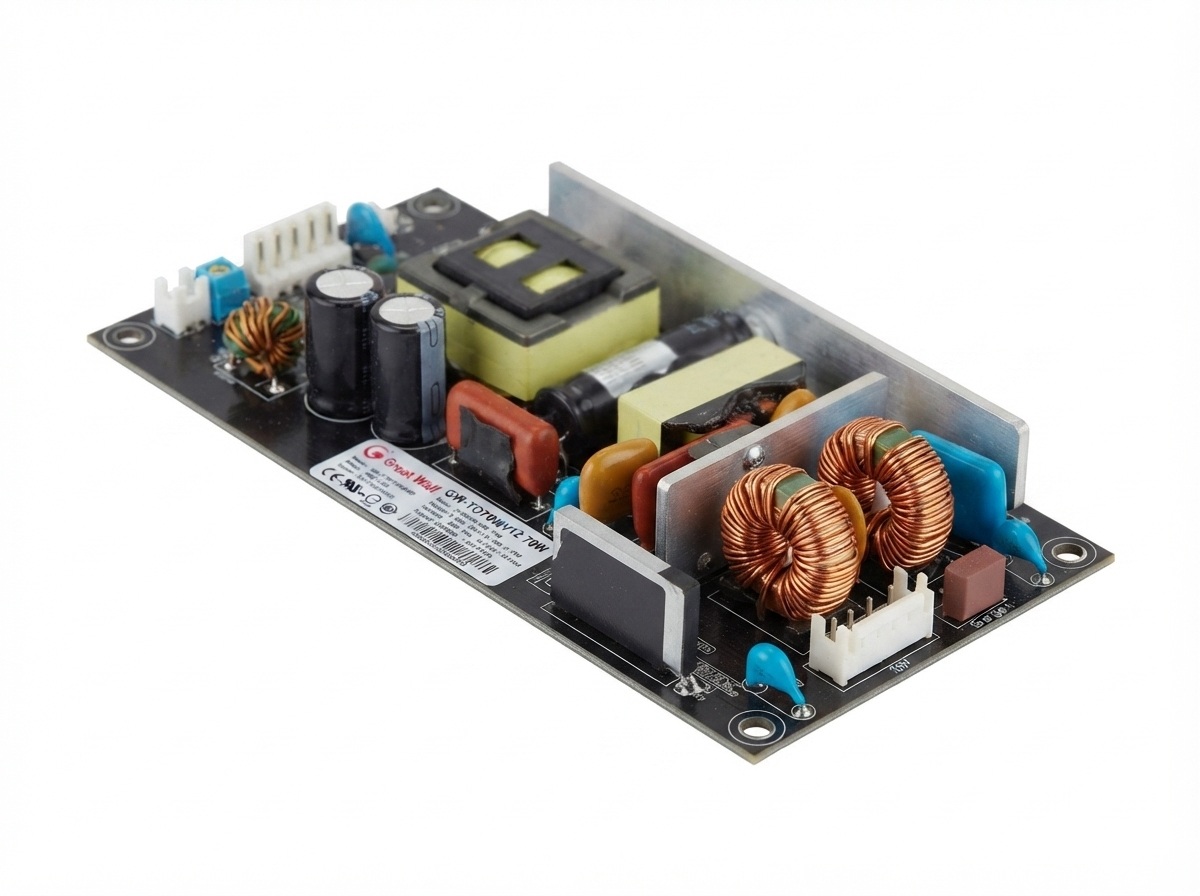

PRODUCT VIEW GW-TO70WV12 product image 1

Images are for reference only. Actual product appearance may vary.

01 / 06

GW-TO70WV12

Open Frame

INQUIRY READY

GW-TO70WV12

Greatwall / Server Power Supply / Open Frame

GW-TO70WV12 was developed around the needs of Embedded Systems, Industrial Control, Security Equipment, and Communication Devices. Its combination of 70W capacity and a stable 12V rail provides dependable performance across distributed operating sites.

Model
GW-TO70WV12
Series
Open Frame
Input Voltage
90-290Vac / 192-288Vdc
Output Voltage
12V
Request a Quote ↗

Need compatibility confirmation? Send us your model, label photo, power rating, and connector requirements.

PRODUCT OVERVIEW

Built for reliable, continuous power delivery.

GW-TO70WV12 is suitable for compact equipment that needs reliable 12V DC power inside a limited internal space. It can be used in industrial control systems, embedded hardware, communication equipment, monitoring devices, and other OEM platforms where the power supply is installed directly inside the main device structure.

Plan the GW-TO70WV12 output wiring around the actual current demand: keep conductors short, use low-resistance terminations, separate power paths from sensitive signal wiring, and preserve access for retightening and inspection. Arrange the enclosure so heat from neighboring components cannot collect around the supply or its connection points.

Qualify the GW-TO70WV12 at several load levels, measuring voltage at both the supply terminals and the equipment input rather than relying only on no-load readings. Record cable drop, connector temperature, and enclosure temperature as baseline values. Later maintenance checks can compare against this record to identify loose joints, rising contact resistance, or deteriorating heat dissipation before they interrupt service.

CORE ADVANTAGES

70W Open Frame Power Supply

GW-TO70WV12 provides 70W output capacity in an open frame structure, making it suitable for equipment where space, airflow, and internal layout flexibility are important. The exposed board-level design allows easier integration into OEM and industrial systems.

01

Compact 70W Open Frame Design

GW-TO70WV12 provides 70W output capacity in an open frame structure, making it suitable for equipment where space, airflow, and internal layout flexibility are important. The exposed board-level design allows easier integration into OEM and industrial systems.

02

Stable 12V DC Output

This model delivers a 12V output, which is commonly used in control boards, embedded modules, communication terminals, security devices, and low-to-medium power industrial electronics.

03

Wide AC/DC Input Compatibility

With an input range of 90-290Vac / 192-288Vdc, GW-TO70WV12 can support wide voltage conditions and is suitable for applications where the power source may vary between standard AC input and DC bus environments.

04

Safety Certification Support

The model lists CCC / CB / CE safety standards, supporting its use in products that require basic international and domestic compliance references.

05

Suitable for OEM Integration

The open frame format is especially useful for manufacturers building customized equipment. It can be installed inside device enclosures, control panels, embedded systems, and other compact platforms where a finished external power adapter is not suitable.

06

Installation and Thermal Planning

The board-level design gives system engineers flexibility when positioning the power module inside the final equipment. Proper mounting, insulation clearance, wiring protection, and airflow should be planned to support reliable operation in the completed enclosure.

MODEL SELECTION

Compare Greatwall power options.

Review nearby Greatwall models and select the power level, output architecture, and form factor that best match the target system.

Model Input Voltage Output Voltage Safety Watt Recommended Application
GW-TO25WV12 90-290Vac / 192-288Vdc 12V CCC / CB / CE 25W Small control boards, compact terminals, and low-power electronic devices
GW-TO40WV12 90-290Vac / 192-288Vdc 12V CCC / CB / CE 40W Compact 12V equipment, embedded controllers, and light-load industrial systems
GW-TO70WV12 90-290Vac / 192-288Vdc 12V CCC / CB / CE 70W Medium-low power 12V systems requiring wider input support and compact integration
GW-TO70WV54 90-290Vac / 192-288Vdc 54V CCC / CB / CE 70W 54V communication devices, PoE-related equipment, and distributed DC power systems
GW-TO150WV54 90-290Vac / 192-288Vdc 54V CCC / CB / CE 150W Higher-power 54V platforms, communication terminals, and industrial DC equipment
GW-TO409WV12 90-290Vac / 190-290Vdc 54V CCC / CB / CE 409W High-load open frame systems requiring stronger power capacity and DC input flexibility
GW-TO460WV12 90-290Vac / 190-290Vdc 54V CCC / CB / CE 460W Higher-power industrial, embedded, and equipment-level power platforms

DEPLOYMENT SCENARIOS

Where GW-TO70WV12 fits best.

GW-TO70WV12 is suitable for compact equipment that needs reliable 12V DC power inside a limited internal space. It can be used in industrial control systems, embedded hardware, communication equipment, monitoring devices, and other OEM platforms where the power supply is installed directly inside the main device structure.

Scenario Application Value
Industrial Control Equipment Provides 12V power for control boards, relay modules, small PLC-related systems, and industrial terminals
Embedded Systems Suitable for compact computing devices, embedded controllers, and board-level equipment
Communication Devices Can support routers, gateways, signal terminals, and communication control units requiring stable 12V input
Security Equipment Applicable to monitoring systems, access control devices, camera-related equipment, and small security terminals
OEM Electrical Equipment Useful for manufacturers integrating power supply modules into custom enclosures or equipment platforms

POWER DESIGN

Reliability notes for continuous operation.

GW-TO70WV12 is designed for equipment-level integration where stable DC output, compact installation, and wide input adaptability are important. The 12V output makes it practical for many common control and embedded platforms, while the open frame structure allows engineers to arrange the power supply according to enclosure size, airflow direction, and internal wiring requirements.

Design Point Recommendation
Load Planning Avoid operating continuously at full load when the system has high ambient temperature or limited airflow
Thermal Management Reserve enough space around heat-generating components and ensure airflow is not blocked
Electrical Safety Keep proper clearance from metal parts, signal boards, and user-accessible areas
Integration Method Use secure mounting points and avoid vibration or mechanical stress on the PCB
Output Stability Match the 12V output with equipment load requirements before mass installation

INSTALLATION

Installation and operating guidance.

Confirm electrical compatibility, thermal clearance, mechanical fit, and system load before integration.

Item Guidance
Installation Position Install inside a protected equipment enclosure or cabinet
Ventilation Keep airflow paths open and avoid covering high-temperature components
Wiring Confirm input and output polarity, terminal connection, and cable rating before powering on
Load Check Verify that total system load stays within the 70W output capacity
Safety Distance Maintain proper spacing from conductive parts, enclosure walls, and other boards
Maintenance Inspect dust, loose wiring, aging components, and abnormal heat during regular service
Application Matching Use in equipment that requires 12V output and compact open frame power integration

FAQ

Frequently asked questions about GW-TO70WV12.

Key answers for specification matching, installation planning, and system integration.

What type of equipment is GW-TO70WV12 suitable for?

GW-TO70WV12 is suitable for compact industrial control equipment, embedded systems, communication devices, monitoring equipment, and OEM electronic platforms that require stable 12V DC output.

Is GW-TO70WV12 an external adapter or an internal power supply?

It is an open frame power supply. It is normally installed inside the equipment enclosure rather than used as a standalone external adapter.

What is the output voltage of GW-TO70WV12?

The output voltage is 12V, making it suitable for many control boards, embedded modules, communication terminals, and electronic devices.

What input range does this model support?

GW-TO70WV12 supports 90-290Vac / 192-288Vdc, allowing it to work with wide AC input and certain DC input environments.

Can this model be used in industrial control systems?

Yes. Its 70W capacity and 12V output make it suitable for small and medium-load industrial control systems, especially where compact internal power integration is required.

What should be considered during installation?

The main points are insulation, airflow, wiring security, load margin, and mechanical fixing. Since it is an open frame product, the final equipment enclosure should provide proper protection.

Is 70W enough for embedded equipment?

It depends on the total load of the device. For compact embedded controllers, small communication terminals, and low-to-medium power systems, 70W can be suitable if the total power demand stays within the rated capacity.

How should I choose between GW-TO70WV12 and other Open Frame models?

Choose GW-TO70WV12 if your system needs 12V output and 70W capacity. If the load is lower, GW-TO25WV12 or GW-TO40WV12 may be enough. If the system requires higher power or 54V output, other models in the Open Frame series may be more suitable.
