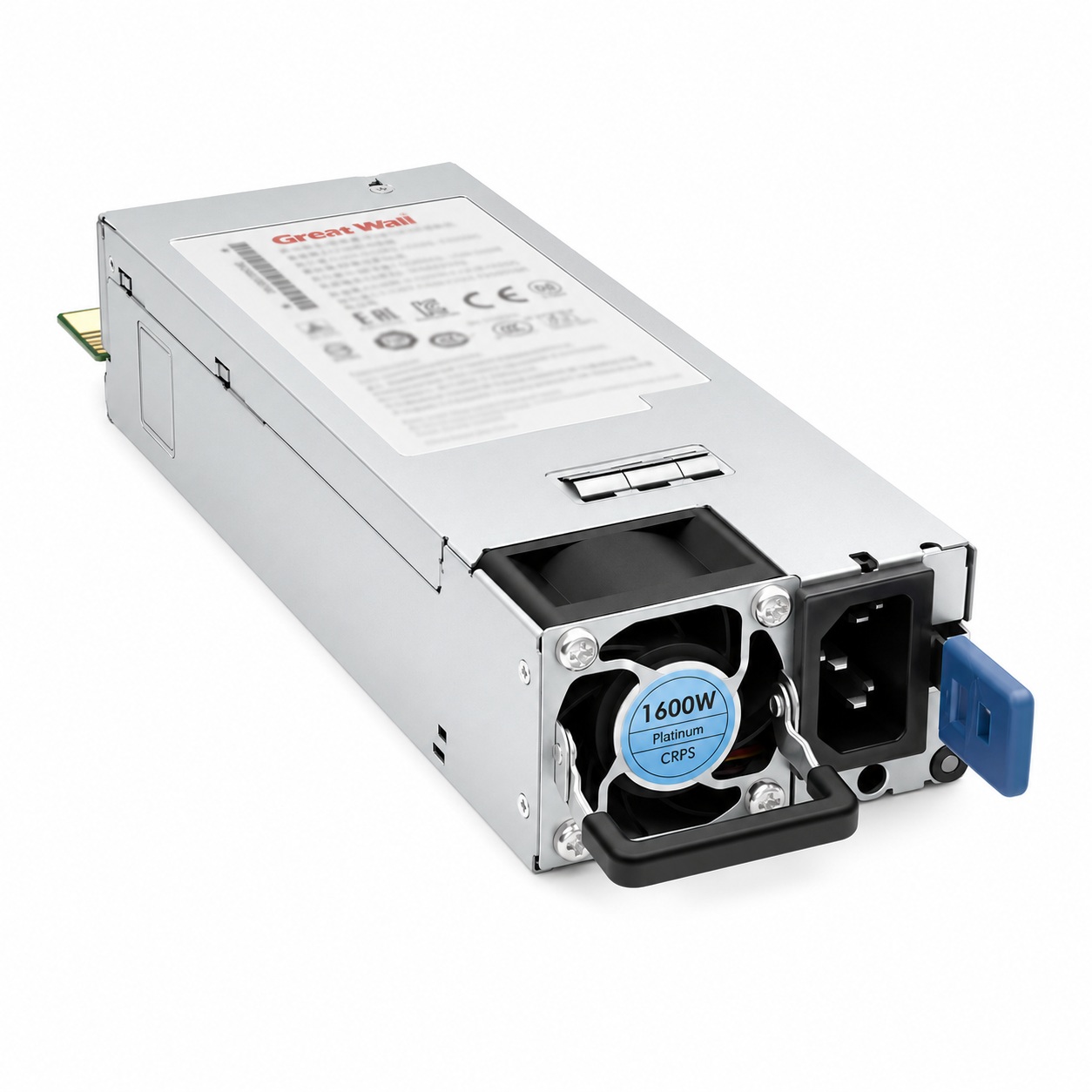

PRODUCT VIEW CRPS1600N3 product image 1

Images are for reference only. Actual product appearance may vary.

01 / 06

CRPS1600N3

CRPS

INQUIRY READY

CRPS1600N3

Greatwall / Server Power Supply / CRPS

CRPS1600N3 was developed around the needs of Data Center Servers, Cloud Computing Nodes, Storage Platforms, and AI / Hpc Systems. Its combination of 1600W capacity and a stable +12V / 65.6A rail provides an installation-ready choice for mission-critical equipment.

Model
CRPS1600N3
Input Voltage
90VAC–264VAC or 180VDC–320VDC
Standby Output
+12VSB / 3A
Output Power
1600W
Request a Quote ↗

Need compatibility confirmation? Send us your model, label photo, power rating, and connector requirements.

PRODUCT OVERVIEW

Built for reliable, continuous power delivery.

The CRPS1600N3 is designed for server platforms that need more power capacity than mainstream 1300W CRPS units while still maintaining a compact CRPS footprint. It is suitable for enterprise servers, cloud computing nodes, storage systems, and higher-density infrastructure where stable 12V output, efficient operation, and controlled thermal behavior are important. For this 1600W capacity, +12V / 65.6A, +12V / 131.1A output, allow practical headroom for startup demand and transient loads, while keeping intake and exhaust paths clear throughout continuous operation.

Plan the CRPS1600N3 output wiring around the actual current demand: keep conductors short, use low-resistance terminations, separate power paths from sensitive signal wiring, and preserve access for retightening and inspection. Arrange the enclosure so heat from neighboring components cannot collect around the supply or its connection points.

Qualify the CRPS1600N3 at several load levels, measuring voltage at both the supply terminals and the equipment input rather than relying only on no-load readings. Record cable drop, connector temperature, and enclosure temperature as baseline values. Later maintenance checks can compare against this record to identify loose joints, rising contact resistance, or deteriorating heat dissipation before they interrupt service.

CORE ADVANTAGES

1600W CRPS Power Supply for Enterprise Server and High-Density Computing Platforms

The CRPS1600N3 delivers 1600W output for enterprise servers, cloud computing nodes, storage systems, and high-performance platforms that require stronger 12V power support.

01

1600W High-Density CRPS Power Capacity

The CRPS1600N3 delivers 1600W output for enterprise servers, cloud computing nodes, storage systems, and high-performance platforms that require stronger 12V power support.

02

Compact Standard CRPS Form Factor

Built in a compact 185 × 73.5 × 40 mm CRPS structure, this model supports high power density while fitting mainstream server and storage chassis designs.

03

Wide AC and DC Input Support

It supports 90VAC–264VAC AC input and 180VDC–320VDC DC input , making it suitable for different rack power environments and data center infrastructure designs.

04

Dual 12V Main Output Performance

The unit provides +12V / 65.6A and +12V / 131.1A main output options, together with +12VSB / 3A standby output for system control and standby operation.

05

Platinum Efficiency for Continuous Operation

With Platinum efficiency , the CRPS1600N3 helps reduce power loss, improve conversion performance, and support better thermal control in 24/7 server environments.

06

Reliable Certification Coverage for Global Deployment

With certifications including BSMI, CCC, CE, EAC, FCC, KC, RCM, TUV, UKCA, and UL , this model is suitable for enterprise, data center, and global server applications.

MODEL SELECTION

Compare Greatwall power options.

Review nearby Greatwall models and select the power level, output architecture, and form factor that best match the target system.

Model Power Input Voltage Efficiency Form Factor Best-Fit Application
CRPS1300N2 1300W 90VAC–264VAC or 180VDC–320VDC Platinum CRPS Mainstream data center servers, cloud nodes, and enterprise storage systems
CRPS1600N3 1600W 90VAC–264VAC or 180VDC–320VDC Platinum CRPS Higher-load server platforms, storage systems, and accelerator-ready infrastructure
CRPS2000N3 2000W 90VAC–264VAC or 180VDC–320VDC Platinum CRPS Dense compute platforms, high-performance server nodes, and advanced infrastructure systems

DEPLOYMENT SCENARIOS

Where CRPS1600N3 fits best.

The CRPS1600N3 is designed for server platforms that need more power capacity than mainstream 1300W CRPS units while still maintaining a compact CRPS footprint. It is suitable for enterprise servers, cloud computing nodes, storage systems, and higher-density infrastructure where stable 12V output, efficient operation, and controlled thermal behavior are important.

Scenario System Requirement Why CRPS1600N3 Fits
Enterprise Servers Stable power for processors, memory, PCIe cards, and system components 1600W output provides stronger headroom for demanding server workloads
Cloud Computing Nodes Efficient power support for virtualized and distributed computing environments Platinum efficiency helps reduce power loss in large-scale deployments
Storage Systems Reliable power for controllers, drives, backplanes, and cooling modules Dual 12V output design helps support storage platforms with higher current demand
High-Performance Computing Power support for compute-heavy boards and expansion hardware 1600W capacity provides practical support for AI, HPC, and mixed compute workloads
Data Center Infrastructure Continuous operation in 24/7 rack environments Wide input support and global certifications support stable deployment across regions
Edge / Telecom Equipment Compact and serviceable power module for remote infrastructure cabinets Standard CRPS size and FR airflow simplify system integration and maintenance

POWER DESIGN

Reliability notes for continuous operation.

The CRPS1600N3 is built for higher-density server and infrastructure platforms that require stable 12V power delivery, efficient energy conversion, and reliable operation under continuous workloads. Compared with 1300W-class CRPS models, it provides additional power headroom for systems with heavier processing, storage, or expansion requirements.

  • 1600W output capacity supports enterprise servers, cloud nodes, storage platforms, and high-density infrastructure systems.
  • Dual 12V main output options provide flexible power delivery for different server platform requirements.
  • +12VSB / 3A standby output supports system standby control, management functions, and auxiliary circuits.
  • Platinum efficiency helps reduce power conversion loss and supports better thermal performance in 24/7 operation.
  • Wide AC/DC input range allows the unit to work across different data center and rack power environments.
  • FR airflow direction supports standard front-to-rear server cooling architecture.
  • Compact CRPS structure helps maintain power density while fitting slim server chassis designs.
  • Multi-region certification coverage supports broader use in enterprise, data center, and international infrastructure projects.

INSTALLATION

Installation and operating guidance.

Confirm electrical compatibility, thermal clearance, mechanical fit, and system load before integration.

Installation / Operation Item Guidance
Load Planning Keep operating load within a reasonable range to support stable output, efficiency, and long-term reliability
Chassis Fitment Confirm the system supports the 185 × 73.5 × 40 mm CRPS form factor before installation
Input Verification Use the PSU within the supported 90–264VAC or 180–320VDC input range
Output Matching Confirm that the server platform supports the required 12V output configuration and standby power demand
Airflow Direction Make sure the FR airflow direction matches the chassis cooling path before deployment
Thermal Management Keep intake and exhaust areas clear to prevent heat buildup around the PSU bay
Module Installation Ensure the module is fully seated and correctly connected before powering on the system
Routine Maintenance Check fan operation, dust accumulation, connector condition, and system thermal behavior during regular service

FAQ

Frequently asked questions about CRPS1600N3.

Key answers for specification matching, installation planning, and system integration.

What type of power supply is the CRPS1600N3?

The CRPS1600N3 is a 1600W CRPS server power supply designed for enterprise servers, cloud computing nodes, storage systems, and high-density computing platforms.

What is the size of this model?

It uses a compact CRPS structure with dimensions of 185 × 73.5 × 40 mm.

What input voltage range does it support?

The CRPS1600N3 supports 90VAC–264VAC AC input and 180VDC–320VDC DC input.

What output does the CRPS1600N3 provide?

It provides +12V / 65.6A and +12V / 131.1A main output options, together with +12VSB / 3A standby output.

Is this model suitable for high-density server applications?

Yes. Its 1600W output capacity makes it suitable for higher-load enterprise servers, storage platforms, cloud nodes, and compute-intensive infrastructure.

What airflow direction does this model support?

The CRPS1600N3 supports FR airflow, which is suitable for chassis designs using standard front-to-rear cooling.

What efficiency level does this power supply offer?

The CRPS1600N3 is rated at Platinum efficiency, helping reduce energy loss and improve power conversion performance.

What certifications are listed for this model?

The listed certifications include BSMI, CCC, CE, EAC, FCC, KC, RCM, TUV, UKCA, and UL.
