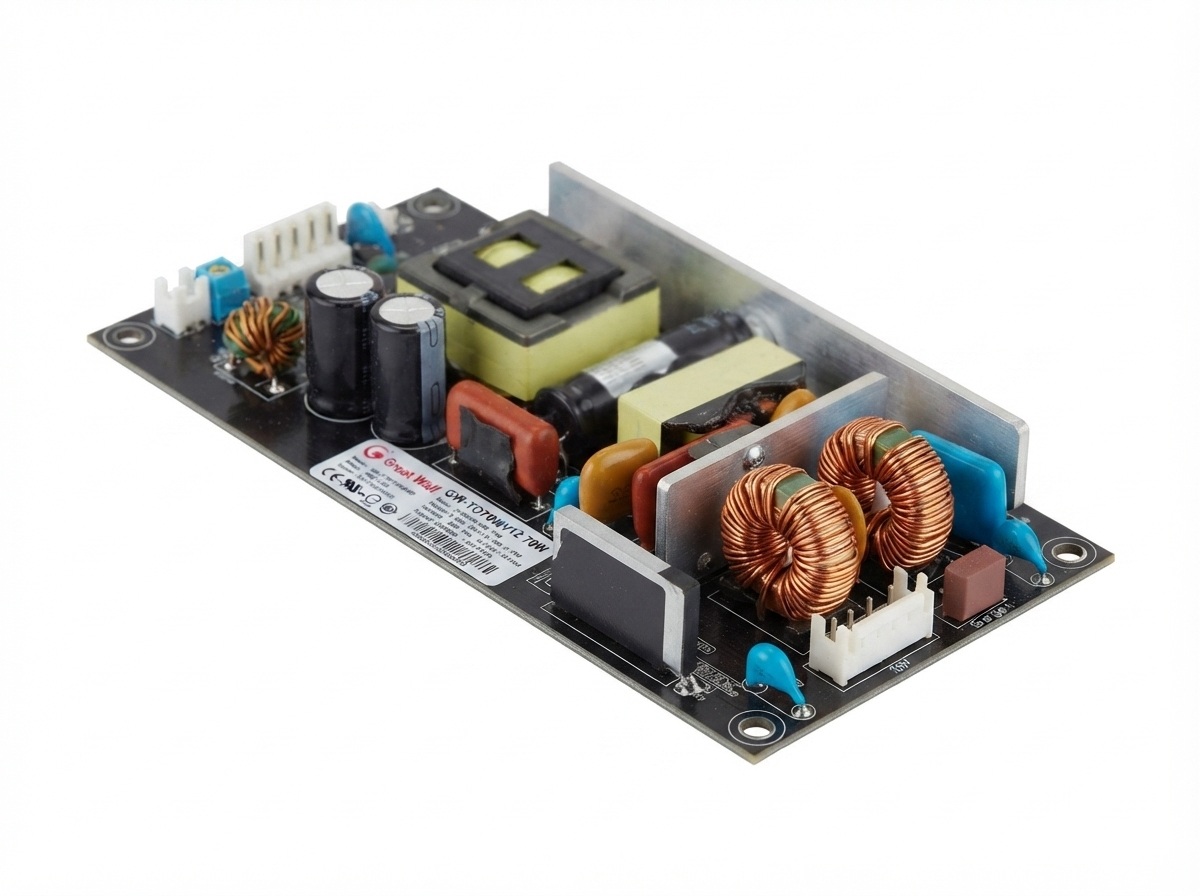

PRODUCT VIEW GW-TO70WV54 product image 1

Images are for reference only. Actual product appearance may vary.

01 / 06

GW-TO70WV54

Open Frame

INQUIRY READY

GW-TO70WV54

Greatwall / Server Power Supply / Open Frame

GW-TO70WV54 matches Embedded Systems, Industrial Control, Po E Equipment, and Communication Devices with 70W capacity and a stable 54V rail, helping operators achieve stable service across demanding field environments.

Model
GW-TO70WV54
Series
Open Frame
Input Voltage
90-290Vac / 192-288Vdc
Output Voltage
54V
Request a Quote ↗

Need compatibility confirmation? Send us your model, label photo, power rating, and connector requirements.

PRODUCT OVERVIEW

Built for reliable, continuous power delivery.

GW-TO70WV54 is suitable for compact equipment that needs 54V DC output inside a limited internal space. It is especially useful for communication-related equipment, PoE power platforms, industrial control devices, embedded systems, and OEM products where the power supply needs to be installed directly inside the main device enclosure.

Plan the GW-TO70WV54 output wiring around the actual current demand: keep conductors short, use low-resistance terminations, separate power paths from sensitive signal wiring, and preserve access for retightening and inspection. Arrange the enclosure so heat from neighboring components cannot collect around the supply or its connection points.

Qualify the GW-TO70WV54 at several load levels, measuring voltage at both the supply terminals and the equipment input rather than relying only on no-load readings. Record cable drop, connector temperature, and enclosure temperature as baseline values. Later maintenance checks can compare against this record to identify loose joints, rising contact resistance, or deteriorating heat dissipation before they interrupt service.

CORE ADVANTAGES

70W Open Frame Power Supply

GW-TO70WV54 provides 70W rated output in an open frame structure, making it suitable for compact equipment that requires board-level power integration. The open frame format helps system designers arrange the power module according to internal enclosure space, airflow direction, and wiring layout.

01

70W Open Frame Power Design

GW-TO70WV54 provides 70W rated output in an open frame structure, making it suitable for compact equipment that requires board-level power integration. The open frame format helps system designers arrange the power module according to internal enclosure space, airflow direction, and wiring layout.

02

54V DC Output for Specialized Applications

Compared with common 12V open frame models, this unit provides 54V output, which is useful for equipment that requires higher DC voltage, such as communication devices, PoE-related systems, distributed power modules, and certain industrial electronic platforms.

03

Wide AC/DC Input Range

The model supports 90-290Vac / 192-288Vdc input, giving engineers more flexibility when designing systems for different power environments. This wide input capability helps simplify product adaptation across different markets and installation conditions.

04

Safety Standard Support

GW-TO70WV54 lists CCC / CB / CE safety standards, supporting product integration in applications that require basic safety approval references for domestic and international projects.

05

Suitable for OEM Equipment Integration

This model is suitable for manufacturers that need an internal power solution rather than an external adapter. It can be integrated into communication equipment, embedded systems, control devices, and custom industrial products.

06

System-Level Integration Flexibility

The open frame construction allows the power board to be integrated into protected communication, control, and embedded equipment. Designers can coordinate the 54V power architecture with the enclosure layout, connector routing, insulation clearance, and cooling path.

MODEL SELECTION

Compare Greatwall power options.

Review nearby Greatwall models and select the power level, output architecture, and form factor that best match the target system.

Model Input Voltage Output Voltage Safety Watt Recommended Application
GW-TO25WV12 90-290Vac / 192-288Vdc 12V CCC / CB / CE 25W Small control boards, compact terminals, and low-power electronic devices
GW-TO40WV12 90-290Vac / 192-288Vdc 12V CCC / CB / CE 40W Compact 12V equipment, embedded controllers, and light-load industrial systems
GW-TO70WV12 90-290Vac / 192-288Vdc 12V CCC / CB / CE 70W Medium-low power 12V systems requiring wide input support and compact integration
GW-TO70WV54 90-290Vac / 192-288Vdc 54V CCC / CB / CE 70W Compact 54V systems, communication terminals, PoE-related devices, and distributed DC equipment
GW-TO150WV54 90-290Vac / 192-288Vdc 54V CCC / CB / CE 150W Higher-power 54V platforms, communication devices, and industrial DC equipment
GW-TO409WV12 90-290Vac / 190-290Vdc 54V CCC / CB / CE 409W High-load open frame systems requiring stronger power capacity and DC input flexibility
GW-TO460WV12 90-290Vac / 190-290Vdc 54V CCC / CB / CE 460W Higher-power industrial, embedded, and equipment-level power platforms

DEPLOYMENT SCENARIOS

Where GW-TO70WV54 fits best.

GW-TO70WV54 is suitable for compact equipment that needs 54V DC output inside a limited internal space. It is especially useful for communication-related equipment, PoE power platforms, industrial control devices, embedded systems, and OEM products where the power supply needs to be installed directly inside the main device enclosure.

Scenario Application Value
Communication Devices Provides 54V DC output for gateways, terminals, signal devices, and communication control units
PoE-Related Equipment Suitable for systems that require higher DC voltage for PoE modules, network devices, or distributed power designs
Embedded Systems Supports compact embedded devices that need internal 54V power conversion
Industrial Control Equipment Can be used in control cabinets, automation terminals, and industrial electronic platforms
OEM Electrical Equipment Useful for manufacturers integrating open frame power modules into custom enclosures or equipment assemblies

POWER DESIGN

Reliability notes for continuous operation.

GW-TO70WV54 is designed for applications where compact size, wide input adaptability, and stable 54V output are important. The 54V output makes it different from standard 12V open frame models and gives it stronger relevance for communication, networking, and PoE-related power architectures.

Design Point Recommendation
Load Planning Keep the system load within the 70W rating and reserve margin for long-term operation
Voltage Matching Confirm that the equipment is designed for 54V input before integration
Thermal Management Maintain enough airflow around heat-generating components and avoid blocked ventilation paths
Electrical Safety Ensure proper insulation, creepage distance, and clearance inside the final enclosure
Mechanical Fixing Secure the board properly to reduce vibration, movement, and connector stress
Application Validation Test the complete system under real load before batch deployment

INSTALLATION

Installation and operating guidance.

Confirm electrical compatibility, thermal clearance, mechanical fit, and system load before integration.

Item Guidance
Installation Position Install inside a protected device enclosure, cabinet, or equipment housing
Input Wiring Confirm AC/DC input conditions and use suitable wire rating before powering on
Output Wiring Verify 54V output polarity and load compatibility before system connection
Ventilation Leave sufficient space around the board and avoid covering key heat components
Safety Protection Prevent direct user contact with exposed circuits after installation
Load Check Make sure total connected load does not exceed the 70W output capacity
Maintenance Inspect dust buildup, loose wiring, abnormal heat, and aging components during regular service

FAQ

Frequently asked questions about GW-TO70WV54.

Key answers for specification matching, installation planning, and system integration.

What type of equipment is GW-TO70WV54 suitable for?

GW-TO70WV54 is suitable for communication devices, PoE-related systems, embedded equipment, industrial control devices, and OEM platforms that require compact 54V DC power.

What is the main difference between GW-TO70WV54 and GW-TO70WV12?

Both models are 70W open frame power supplies, but GW-TO70WV54 provides 54V output, while GW-TO70WV12 provides 12V output. The correct choice depends on the voltage requirement of the final equipment.

Is GW-TO70WV54 an external adapter?

No. It is an open frame power supply designed for internal equipment integration. It should normally be installed inside a protected enclosure or device housing.

What input voltage does this model support?

GW-TO70WV54 supports 90-290Vac / 192-288Vdc, allowing it to work with wide AC input and compatible DC input environments.

Can this model be used for PoE-related equipment?

Yes. The 54V output makes it suitable for some PoE-related devices and communication systems, provided the final design requirements match the 70W power rating.

What should engineers check before using this model?

Engineers should confirm input conditions, 54V load compatibility, total power consumption, wiring rating, insulation distance, airflow, and enclosure protection.

Is 70W enough for communication devices?

It depends on the device load. For compact gateways, terminals, small network devices, and light-to-medium communication equipment, 70W can be suitable if the total load stays within the rated output.

How should I choose between GW-TO70WV54 and GW-TO150WV54?

Choose GW-TO70WV54 for compact 54V systems with lower power demand. Choose GW-TO150WV54 when the system requires the same 54V output but higher power capacity.
