Server power supply power factor describes how effectively an AC input uses the current drawn from the electrical source. It is real input power in watts divided by apparent power in volt-amperes. A PSU with higher power factor can draw less RMS current for the same real input watts at the same voltage, but power factor is not the PSU’s conversion efficiency and does not directly state its electricity consumption. For rack planning, the distinction separates what the server consumes from what the upstream wiring and electrical equipment must carry.
An AC-input server PSU usually includes power-factor correction to shape input current. That circuit does not make power factor a single permanent label: measured PF can vary with load, input voltage and operating mode. A quoted value is useful only with its test point. The concept also applies differently to DC-input servers, for which an AC-side power factor at the PSU inlet is not the relevant quantity. This article concerns an AC-input module and its relationship to the facility feed.
Watts, volt-amperes and efficiency are three different quantities
Real power, measured in watts, represents the average electrical power delivered into the PSU from the AC source. Apparent power, measured in volt-amperes, is the product of RMS input voltage and RMS input current for a single-phase input. Power factor is the ratio of the two: PF = real watts / apparent volt-amperes. A PF of 1 represents an ideal input relationship for this purpose; practical switching supplies have a value below 1 under specified conditions.
Efficiency compares a different boundary: DC output power divided by real AC input power. Suppose a supply delivers 900 W DC while taking 1,000 W real AC power. Its efficiency at that operating point is 90%. If its PF is 0.90, its apparent input power is about 1,111 VA. Neither 90% value substitutes for the other. One concerns loss inside the converter; the other concerns the relationship between real power and input voltage/current waveforms.
These distinctions are especially important when someone divides a nameplate output wattage directly by rack voltage to estimate current. Rated DC output is not actual AC input power, and real input watts are not necessarily equal to volt-amperes. A useful first-pass single-phase relationship is input RMS current ≈ DC output power / (efficiency × PF × RMS input voltage), with each factor evaluated at the same operating point. It is a planning approximation, not a substitute for the manufacturer’s input-current rating or branch-circuit design method.
For three-phase server power equipment, the line-voltage and phase relationship changes the arithmetic; do not apply the single-phase equation mechanically. Likewise, a rack PDU might display watts, VA, current and PF measured for a group of devices. The aggregate PF is not obtained by averaging the individual PF labels: sum the relevant real and apparent quantities over compatible phases and conditions.
Why a rectifier needs power-factor correction

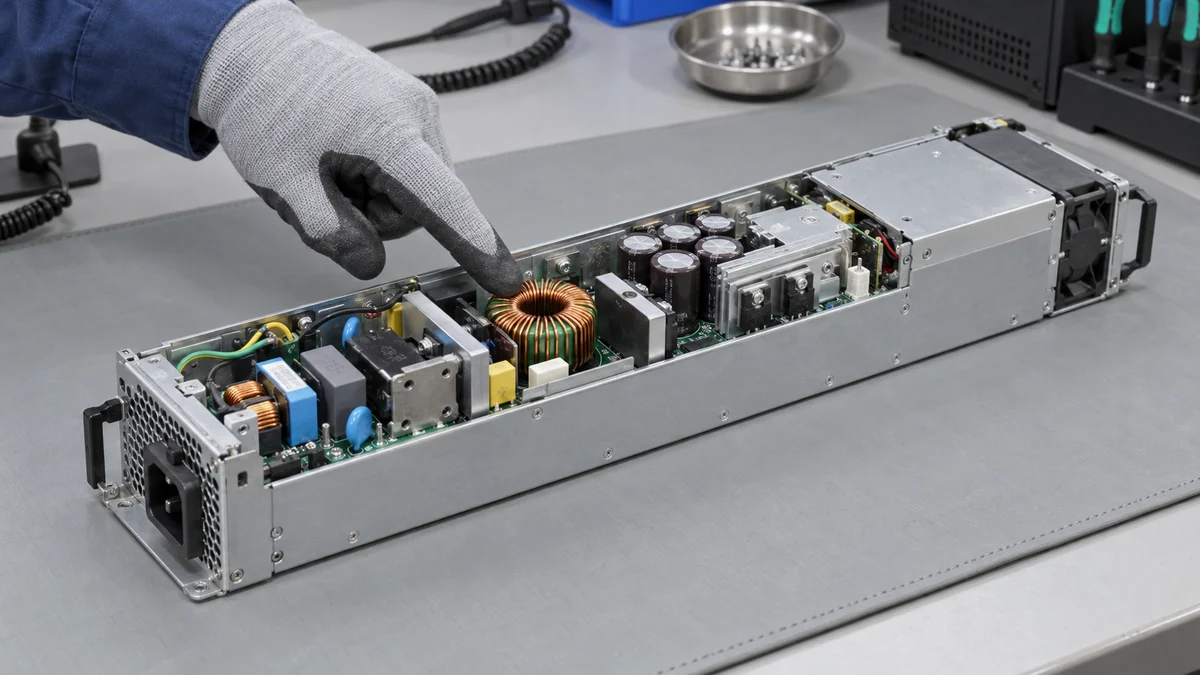

A basic rectifier feeding a bulk capacitor can draw much of its input current in narrow pulses near voltage peaks. Those pulses increase RMS current relative to the real power transferred. Power-factor correction shapes the input current closer to the source-voltage waveform while managing an intermediate DC bus for the downstream converter. In modern server supplies, an active PFC stage is a common approach, though exact topology and performance belong to the specific design.
Power factor is affected by both phase displacement and waveform distortion. A statement that voltage and current are “in phase” is not enough if current is highly nonsinusoidal. True PF uses total real power divided by total apparent power; it therefore captures more than the fundamental-wave displacement alone. This is why an active front end aims at current shaping rather than merely adding a capacitor as a generic correction. Circuit details vary and should be read from the named reference design.
Texas Instruments’ published server/telecom PFC reference design provides a concrete example of a power-factor-converter stage built for a named evaluation platform. Its significance here is architectural: PFC is a real controlled conversion stage between the AC interface and downstream DC-DC conversion. The reference design’s dimensions or efficiency are not generic properties of server PSUs, and its topology should not be assigned to an unrelated commercial module without evidence.
Input filtering and PFC also interact with conducted emissions, inrush and intermediate-bus behavior. A higher PF alone does not prove electromagnetic compatibility, safe startup or adequate hold-up time. Those are separately specified and tested properties. The practical value of PF is narrower but important: it helps describe the AC current the facility must deliver for a given real load.
A rack-current example that keeps the boundaries straight
Consider a hypothetical single-phase PSU operating at 1,000 W real AC input on a stable 230 V RMS feed. If PF is 0.90, apparent power is 1,000 / 0.90 ≈ 1,111 VA and RMS input current is roughly 4.83 A. If a different design at the same real input watts and voltage has PF 0.99, apparent power is about 1,010 VA and current about 4.39 A. The lower-PF case asks the upstream path to carry more RMS current; neither case, on those assumptions, consumes more real watts simply because its PF differs.
Actual server PSUs do not necessarily keep real input watts identical when designs change. A better PFC implementation may have different conversion losses, and changing load or voltage moves the operating point. If a data-center energy comparison is needed, use real measured watts and efficiency information. If a circuit, PDU, UPS or cable-current comparison is needed, examine RMS current and apparent power as well. Confusing the two creates both exaggerated electricity-savings claims and undersized upstream assumptions.
Scale the example cautiously. Ten identical modules at one instant do not automatically produce exactly ten times the single-unit input current on one conductor; redundant load sharing, server utilization, phase allocation and whether the modules are energized all matter. But it illustrates why a fleet’s apparent-power demand can be a meaningful infrastructure variable even when energy billing focuses largely on real energy. Use PDU or power-monitor readings for the actual rack rather than replacing measurement with ten multiplied nameplate ratings.
The calculation also says nothing about breaker selection by itself. Branch-circuit design must consider applicable electrical rules, continuous load, inlet ratings, voltage range, inrush, redundancy states and distribution topology. A PF value at 50% load cannot be pasted into a worst-case current estimate at 100% load unless the manufacturer’s data supports it.
A UPS illustrates why both watts and VA appear on power-system labels. The server fleet places a real-power demand on the conversion and battery system while its current waveform and PF influence apparent-power loading. A UPS can be limited by one rating before the other, depending on its design and the connected load. The correct calculation uses the UPS manufacturer’s simultaneous watt and VA limits, not a blanket rule that PF is the only determinant. Add other rack loads, such as network gear, using measured or documented operating points rather than treating every PSU’s maximum output as continuous AC draw.
Power factor moves with operating point
Server workloads can swing from idle to sustained compute, and redundant modules may run at different shares of total load. A PFC stage optimized for a rated point may show a different PF when lightly loaded. A cold-redundant or standby module may consume little power while its auxiliary circuitry remains active; a headline PF measured at a much higher load does not describe that state. The most useful datasheet or test report shows PF across the load and input conditions relevant to the server’s actual duty.
This is why the operating point attached to a standard matters. The European ecodesign framework for eligible servers and online data storage products specifies power-factor requirements at a defined fraction of rated PSU load, with explicit exclusions and product categories. That is a regulated test condition, not a statement that every server PSU maintains that PF at every workload. A buyer should check whether the equipment and market fall within the rule before invoking it as a universal requirement.
At a rack level, two 1+1 supplies might each carry part of the server load, or one may be in a lower-power state. After one fails, the survivor’s load fraction changes. Its PF can change at the same time as its efficiency and temperature. A comparison made only at normal shared load can miss the input-current behavior in the single-module state. The supported host policy and exact module curves matter more than a generic assumption about active sharing.
Voltage range changes the current required to deliver a given power and can change PF. A supply rated for both low-line and high-line operation may have different input-current limits or output derating. Do not carry a PF measured on 230 V into a 115 V rack calculation unless the documentation supplies it. The complete input table, not a single badge or front-panel watt number, should anchor the infrastructure estimate.
Another subtlety is the measurement interval. A server that alternates between low and high compute load can show different instantaneous current waveforms at each state. Multiplying a PF measured during a short high-load test by an average daily wattage does not necessarily yield a correct daily VA profile. For capacity planning, identify the state that stresses the upstream equipment and the duration of that state. For energy accounting, integrate real watts over time. The two studies may use the same meter but answer different operational questions.
What the measurement can and cannot prove

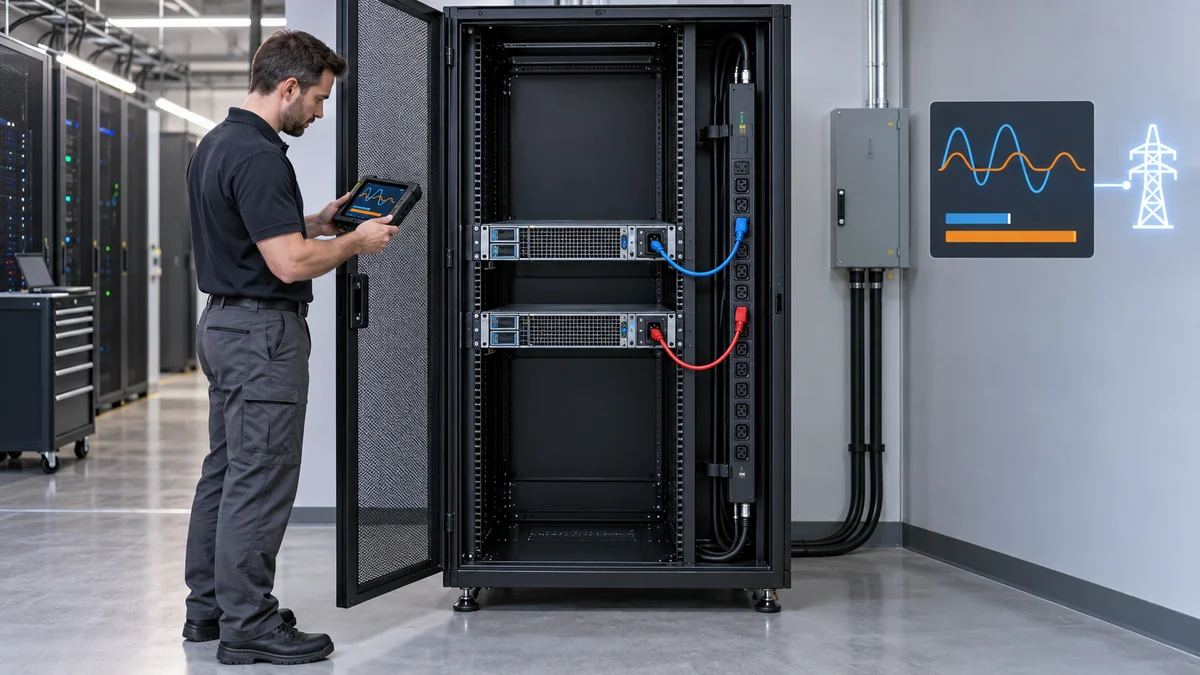

A power analyzer can report real power, apparent power, RMS voltage, RMS current and PF for a defined operating interval. To make a useful server comparison, record the same input voltage, load state, number of active modules and stabilization condition for each reading. Measurement at the PSU inlet has a different boundary from measurement at the rack PDU or upstream UPS, where other loads and distribution effects enter. A PDU’s aggregate PF is useful for that PDU but cannot isolate one module without more granular data.
PF by itself does not identify conversion loss, harmonics spectrum, transient response or power quality at the motherboard. It also does not tell whether a supply is compatible with a server bay. Conversely, a high 80 PLUS efficiency class is not a complete PF specification. Efficiency and PF may both be tested in a program, but they remain separate reported quantities with separate purposes.
For a specification comparison, ask for PF values or a curve at the relevant voltage and load, alongside real input watts or efficiency at the same points. Pair that with the manufacturer’s maximum input-current rating for wiring and upstream equipment decisions. Where a supplier provides only one PF value, retain its stated test condition rather than extrapolating it across the operating envelope.
In short, power factor tells you how much apparent AC input accompanies a given real-power draw. It matters to source current and distribution capacity, while conversion efficiency determines how much real input becomes DC output versus loss. Keeping those two boundaries separate makes a server PSU’s power-factor figure useful without turning it into an energy-saving claim or a universal rack-current shortcut.
